Diesel Powered Systems

These units are great for handling grain and other materials with a capacity upwards of 5,000 BPH. Our vacs are ideal for farmers, elevators, seed companies, ethanol plants, salvage companies, processors, and more.

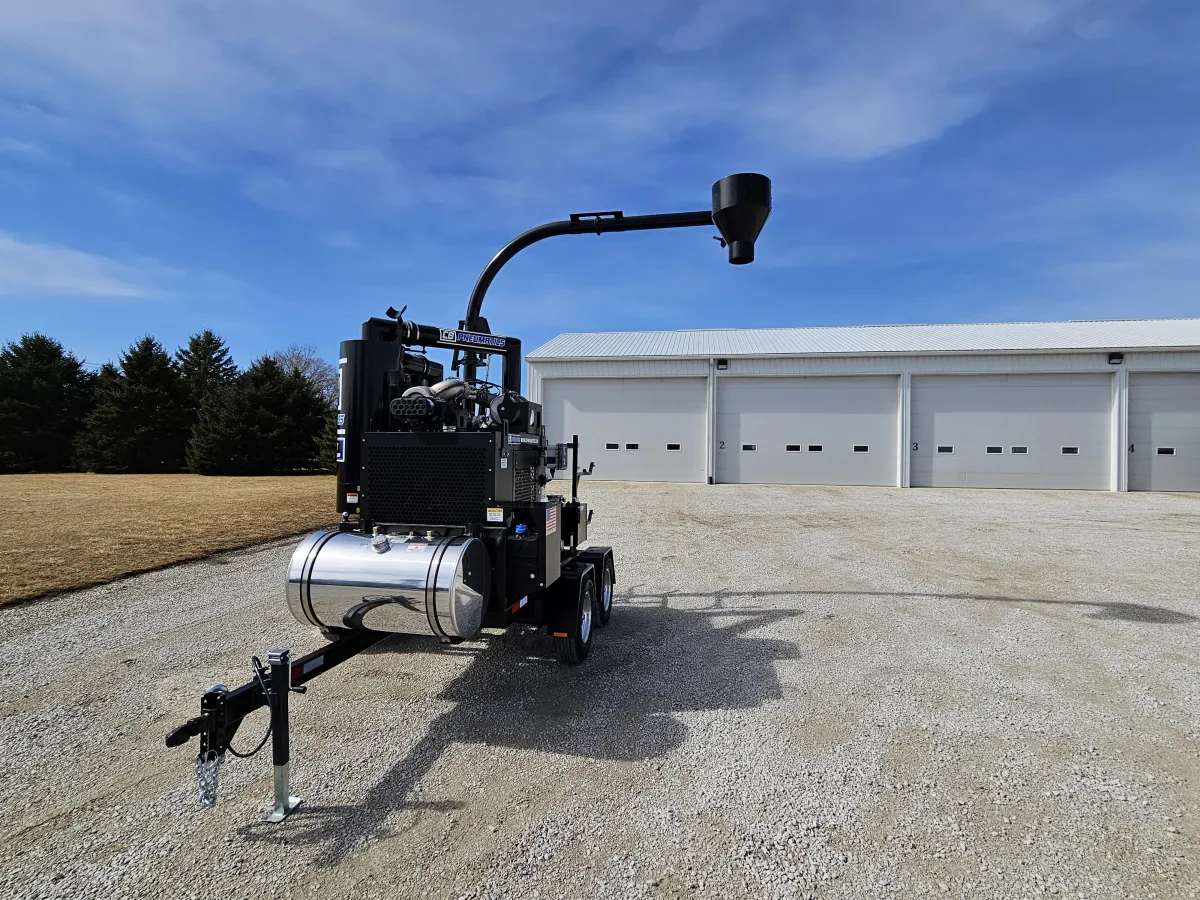

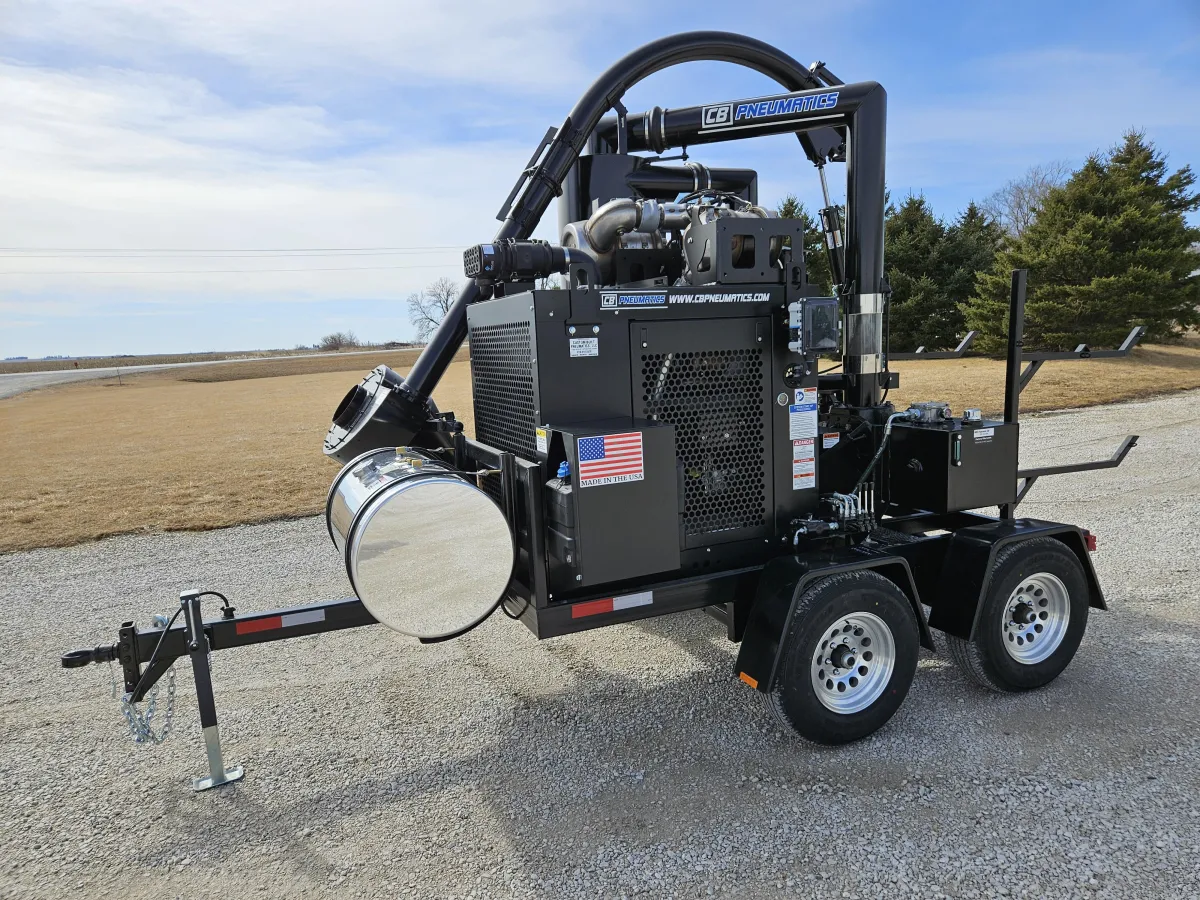

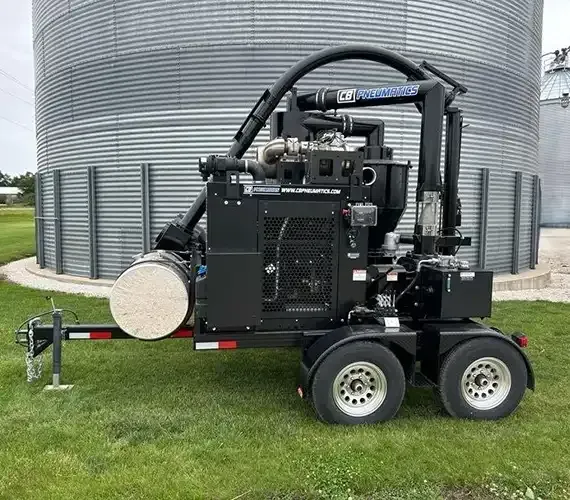

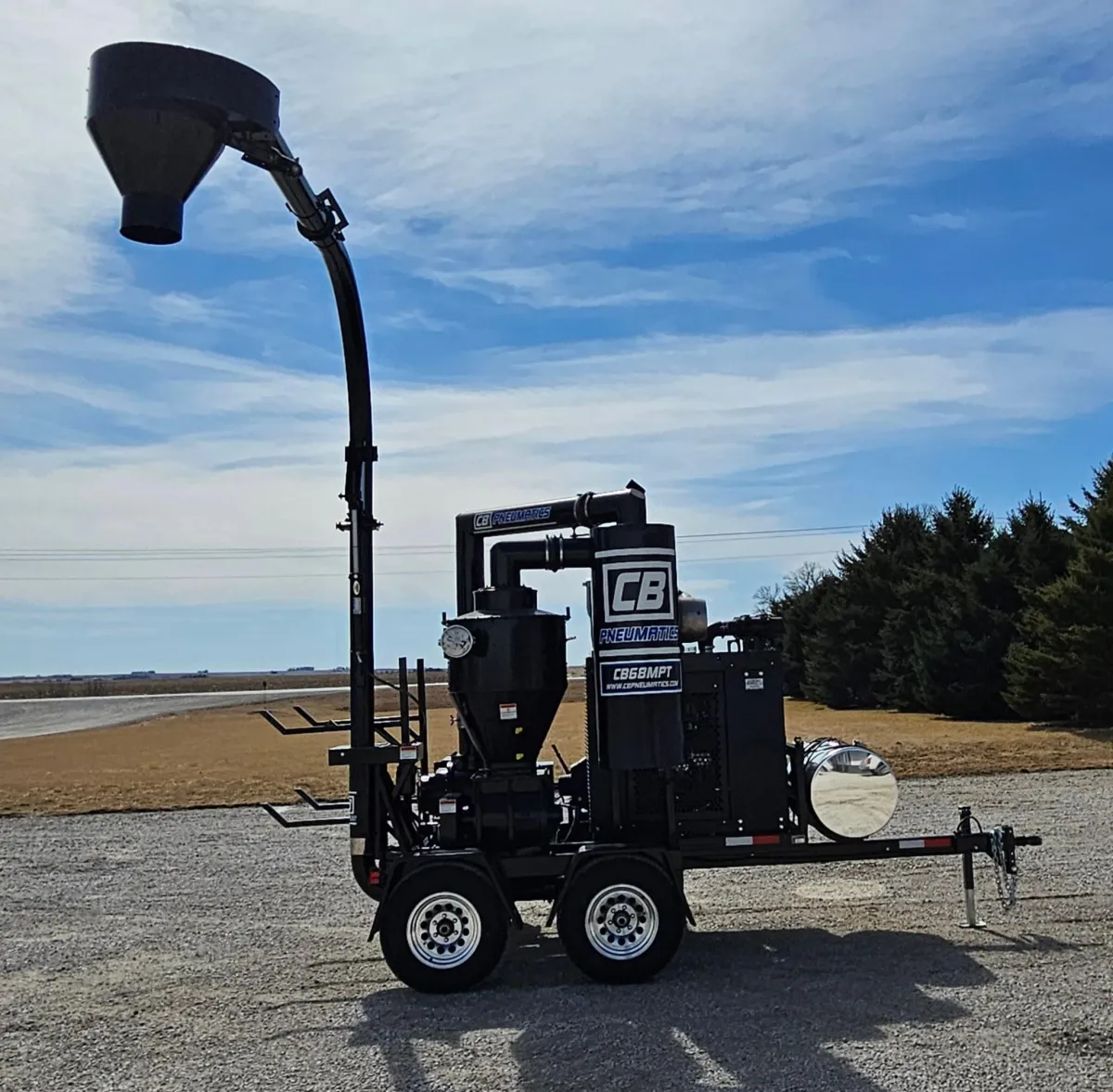

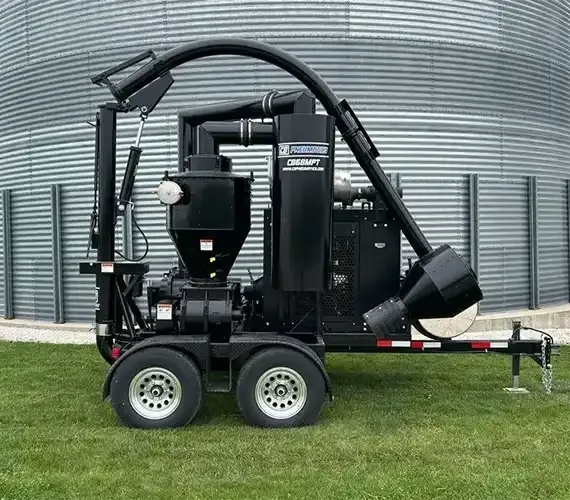

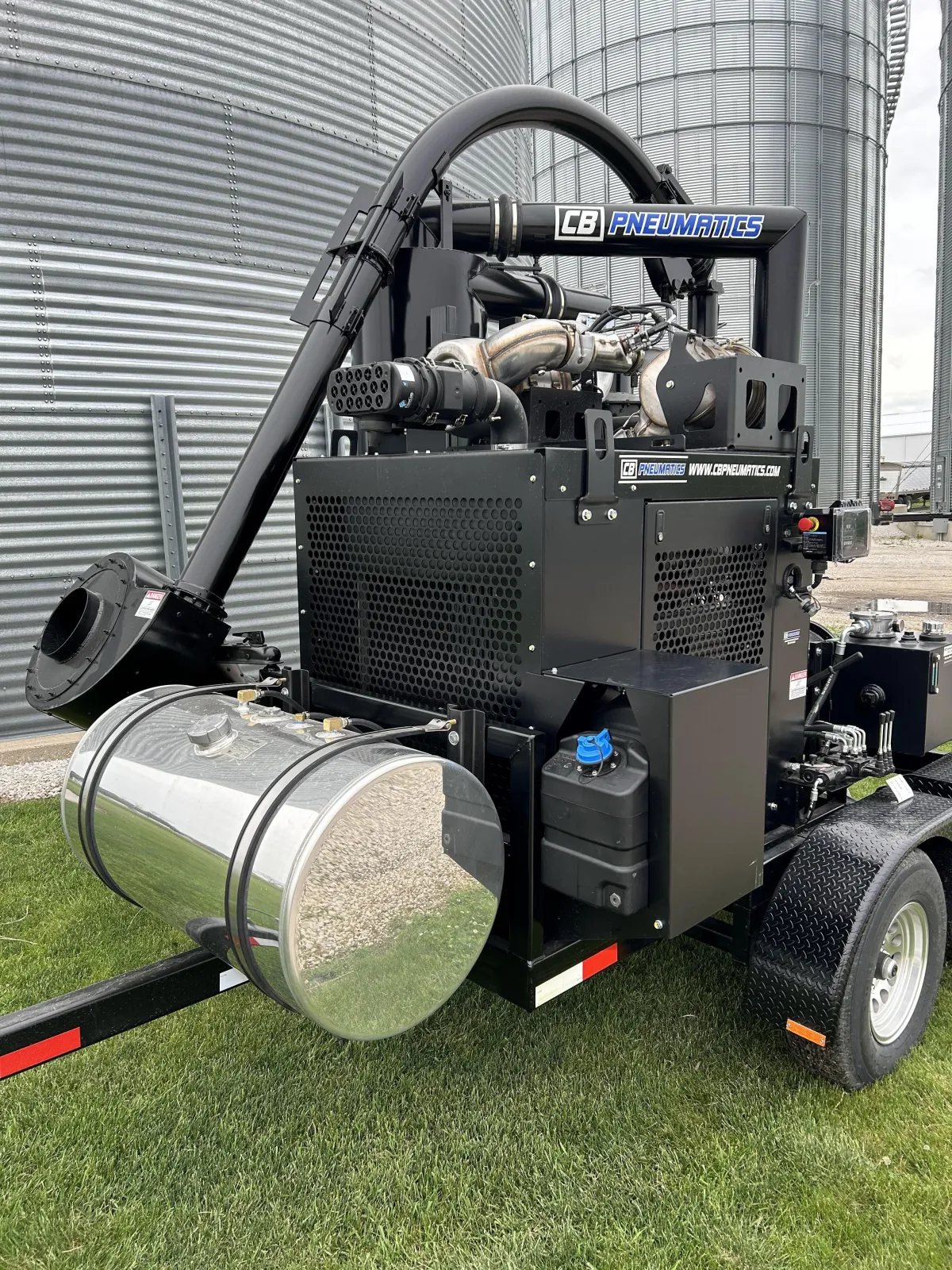

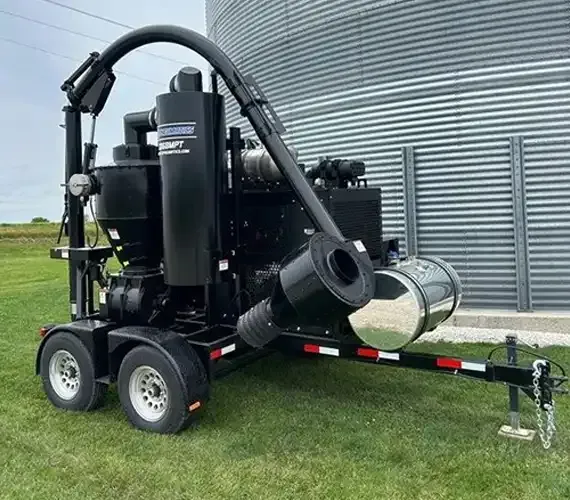

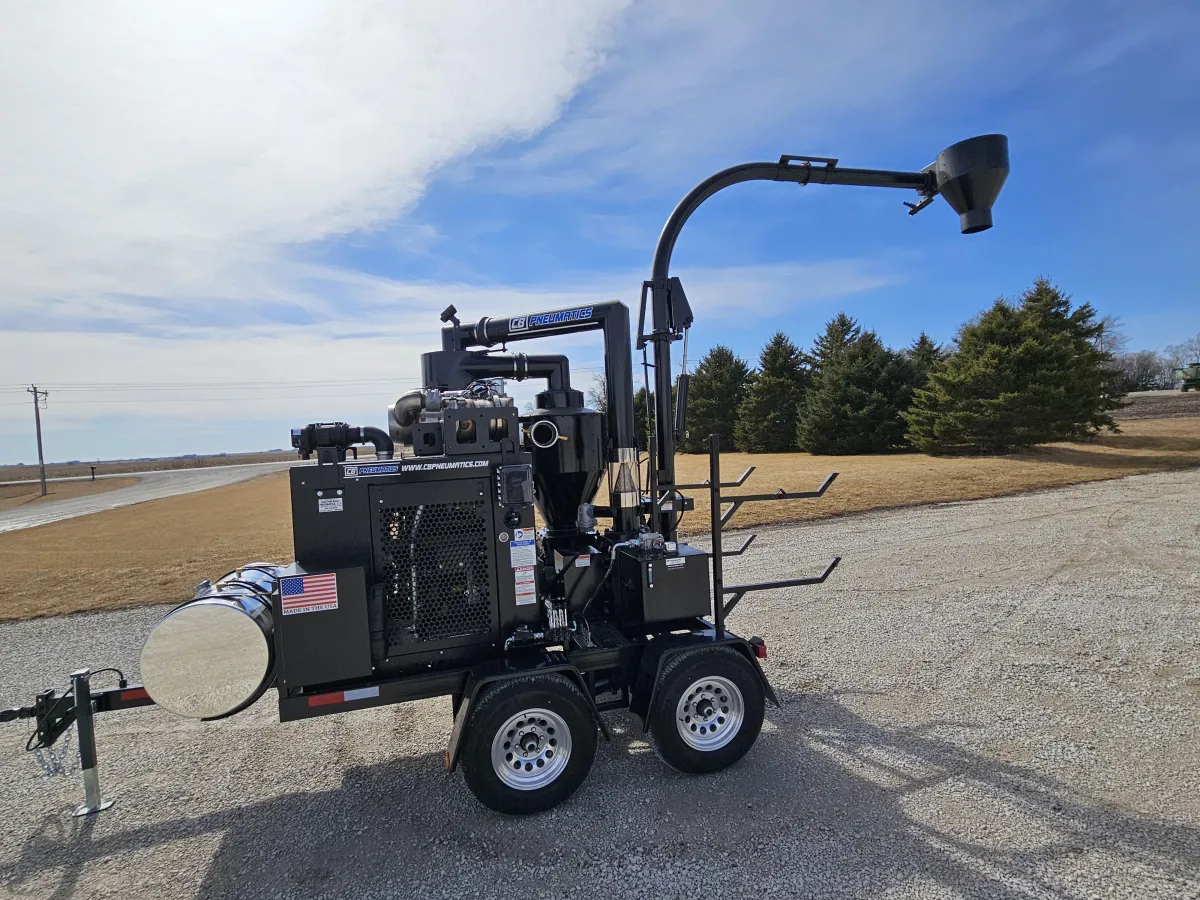

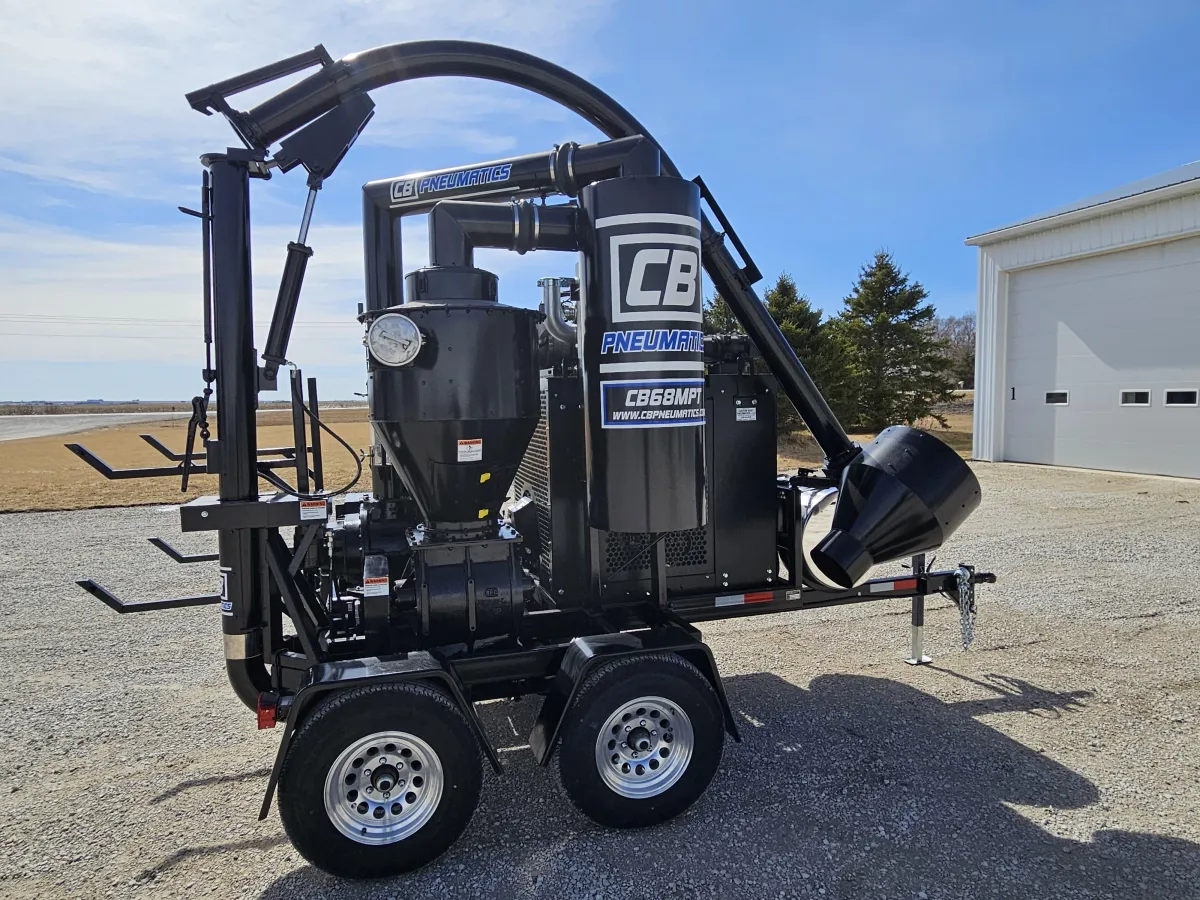

Model CB68MPT Diesel Powered System

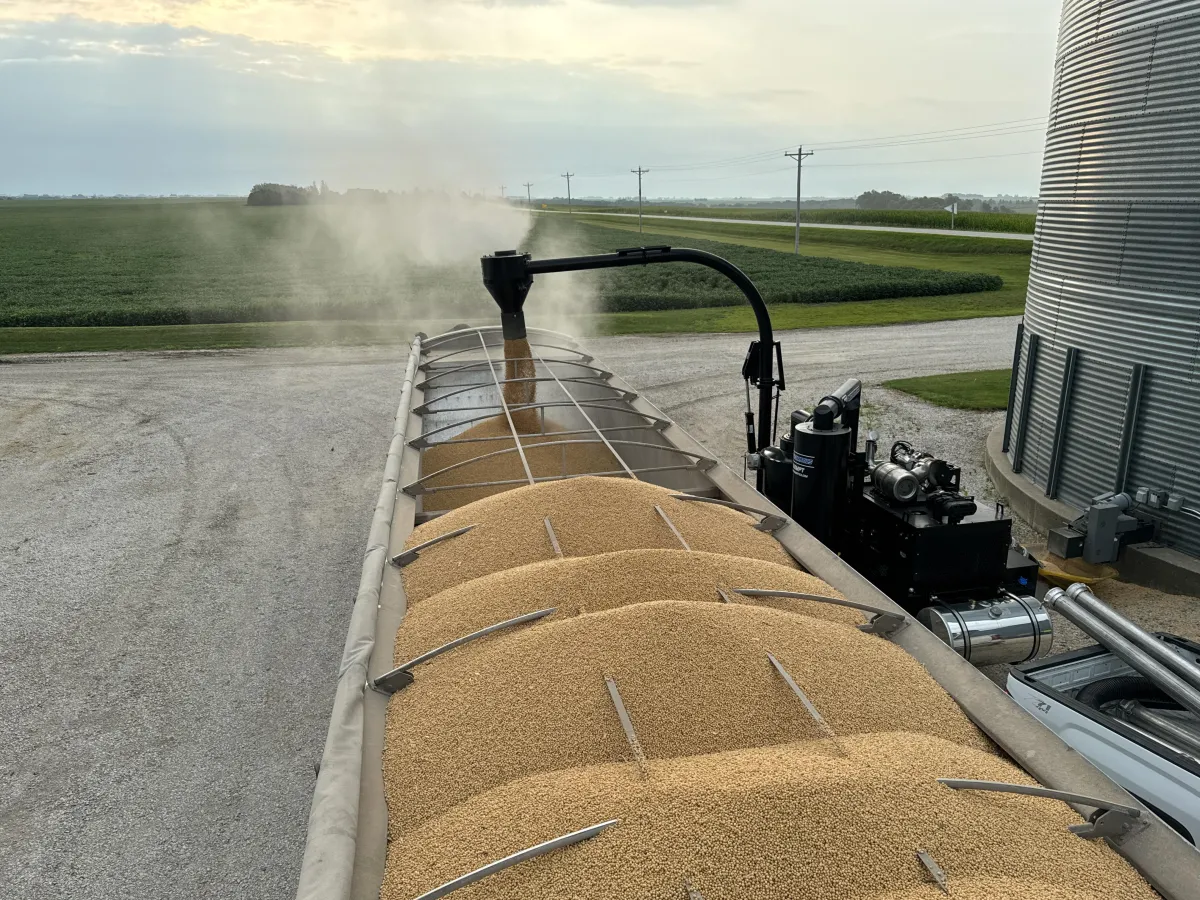

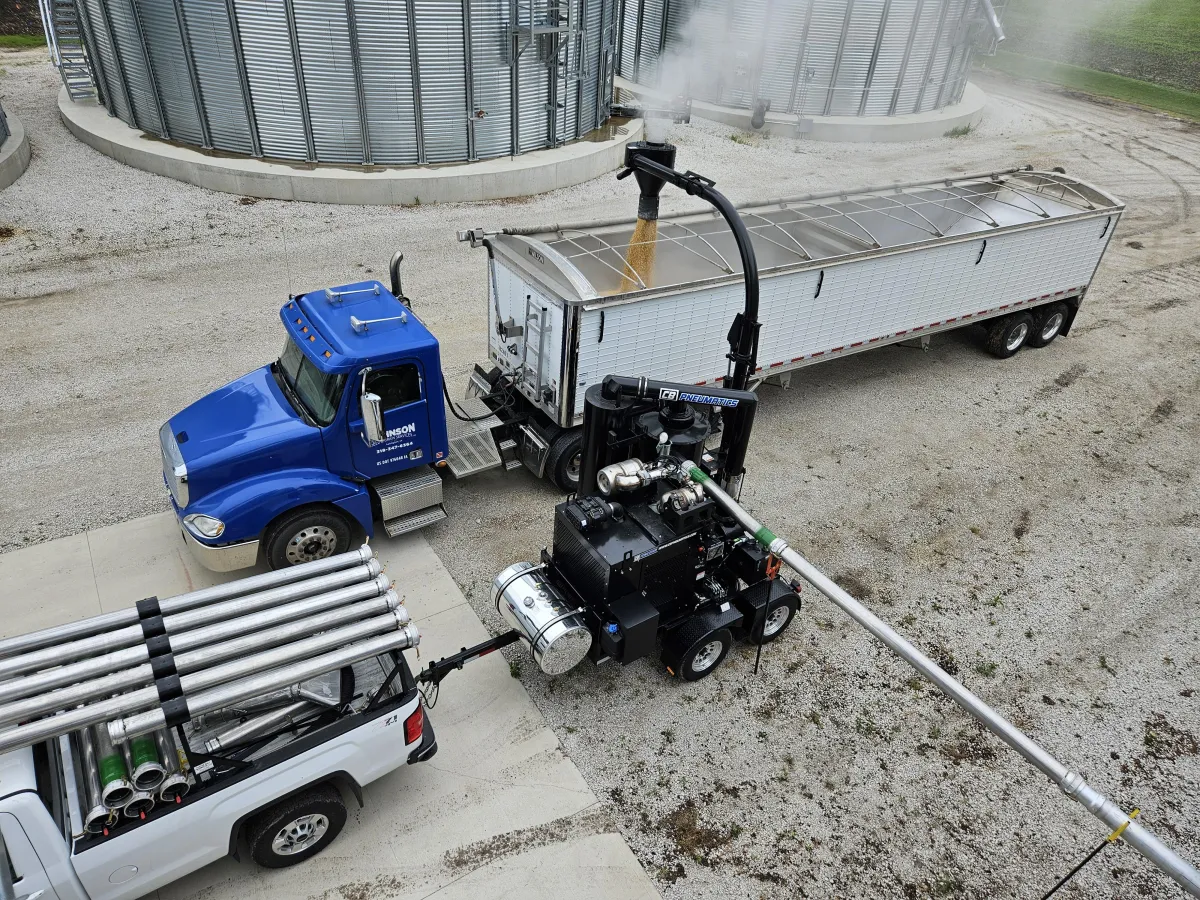

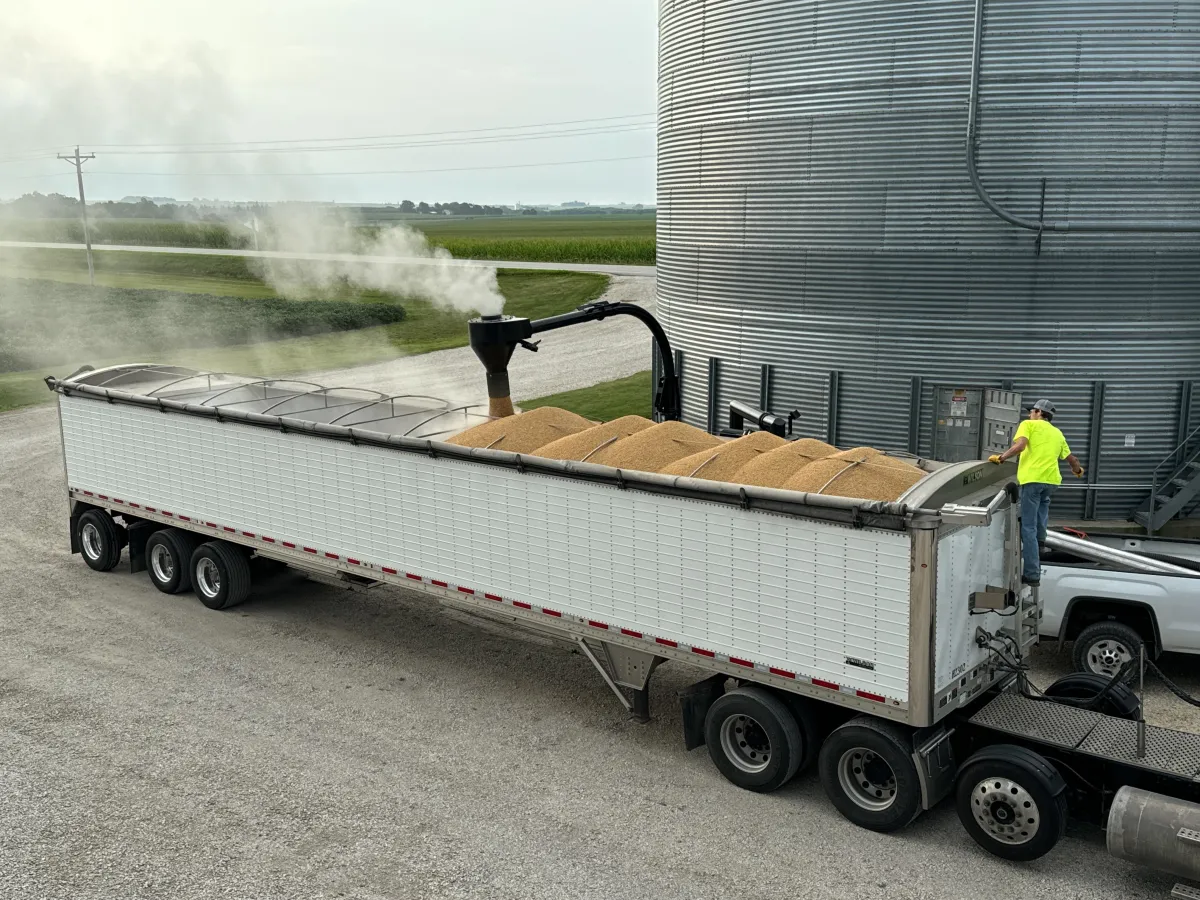

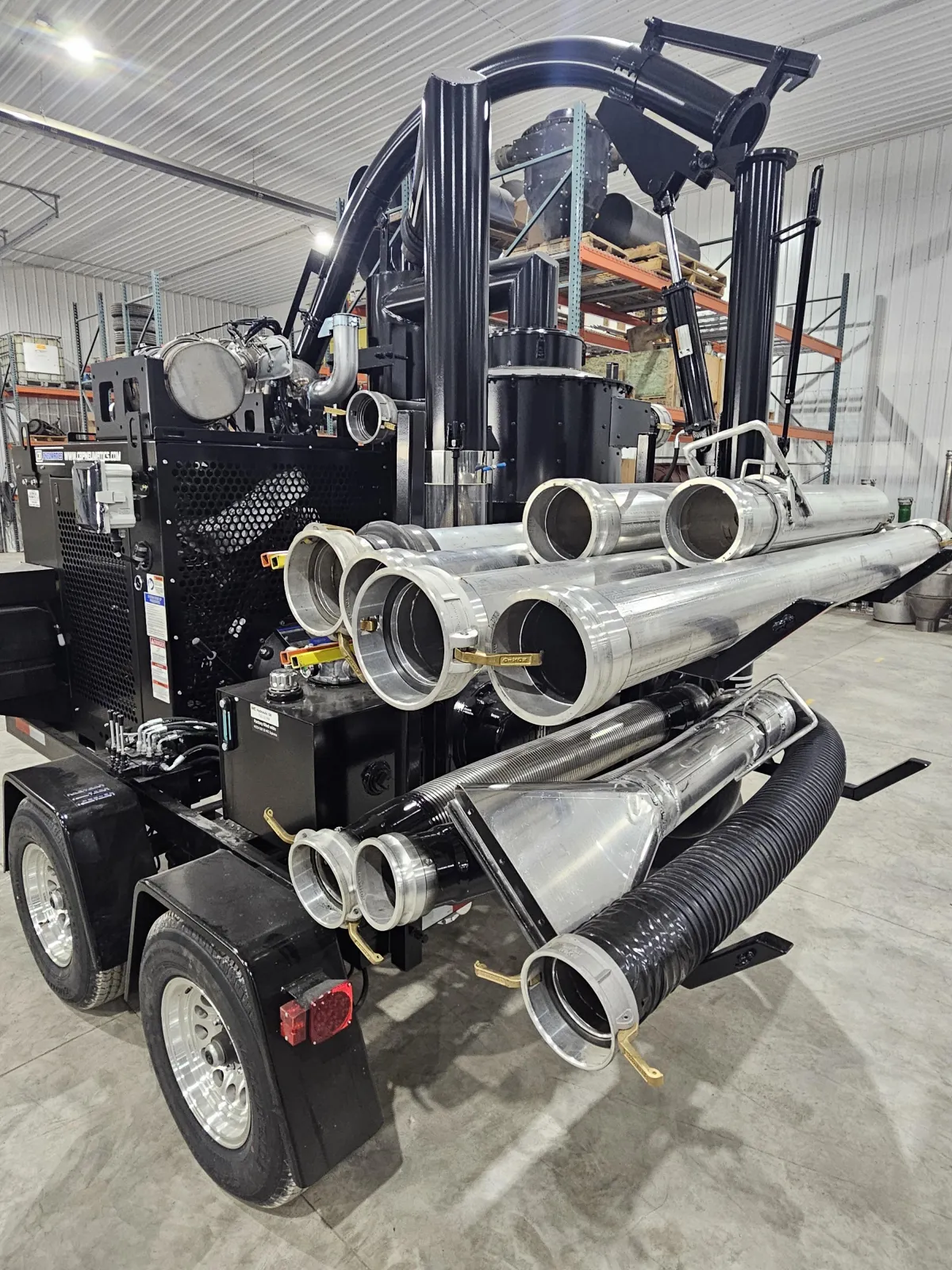

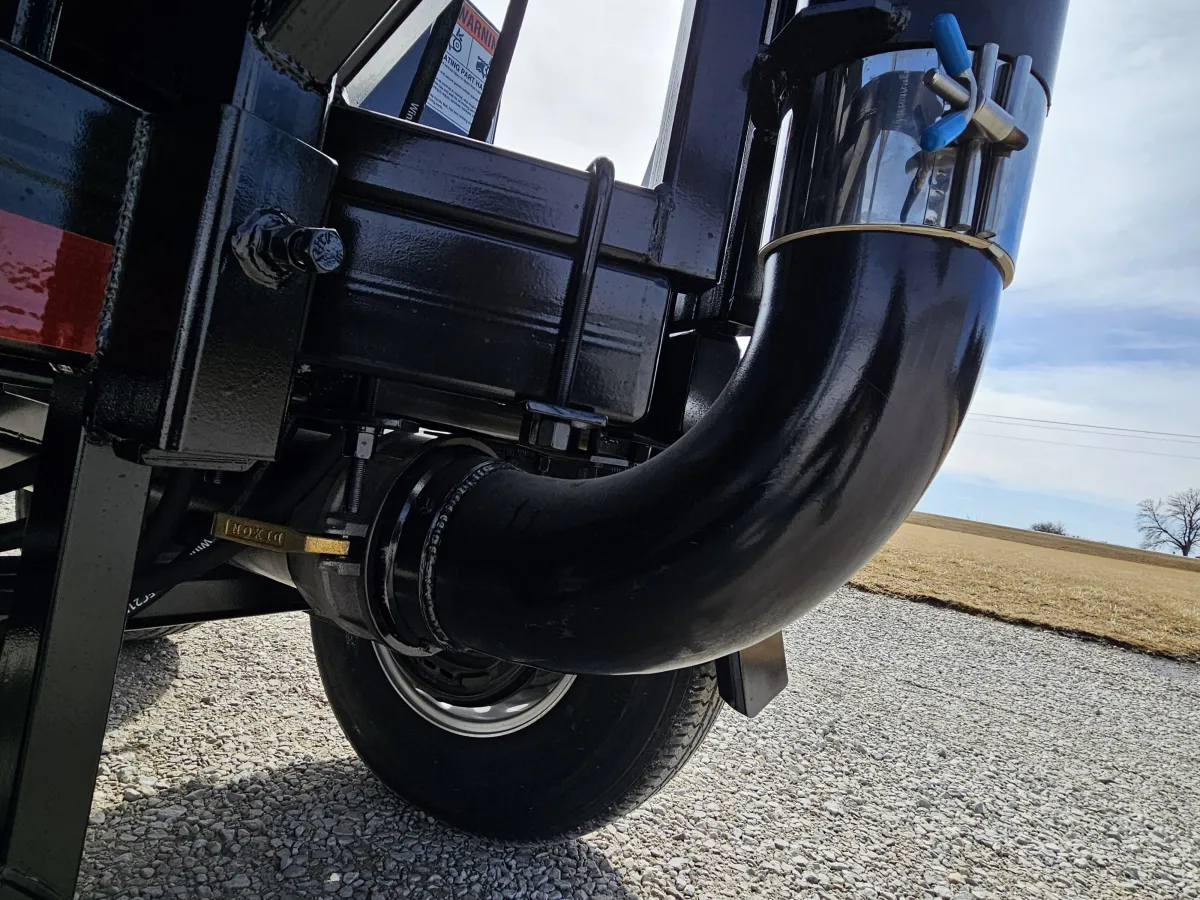

The CB68MPT diesel grain vac is a quiet, compact, self-powered unit that tows easily down the road. You won’t find a diesel powered vac on the market that’s easier to operate or maintain. Our direct drive system eliminates the hassle of realigning belts and improves operational safety. Hydraulic controls simplify movement of the loading arm and airlock. With diesel driven power, operators can unload from three sides, use dual inlets, and transfer material directly into a pit by simply removing the bottom elbow.

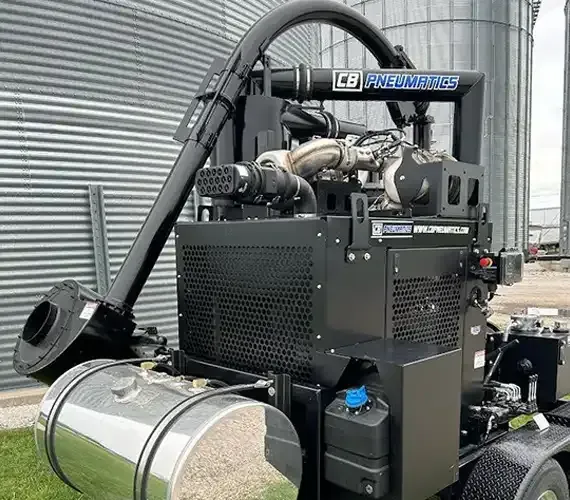

JOHN DEERE- TIER 4, POWERTECH 4.5L DIESEL ENGINE

GARDNER DENVER- 8MVP PUMP, 1800RPM

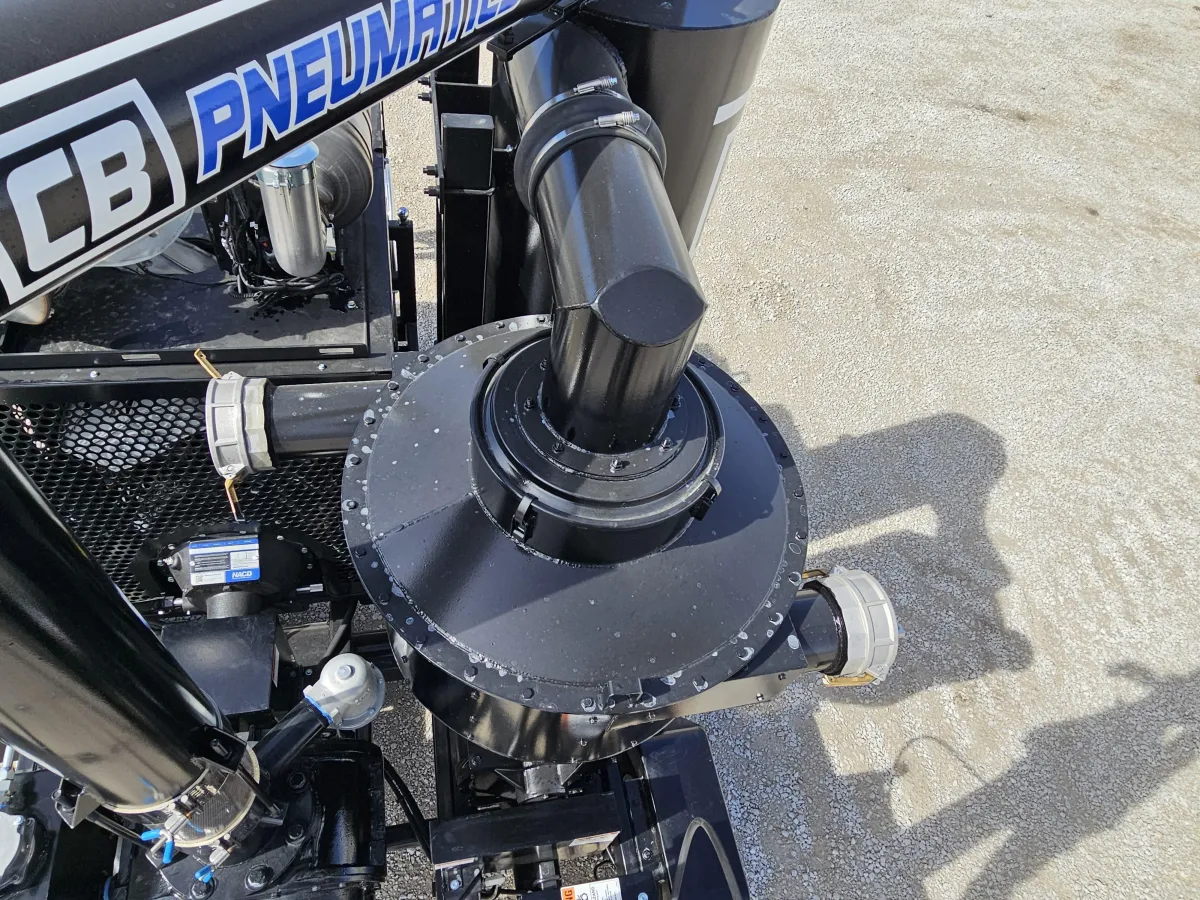

CB PNEUMATICS- ADJUSTABLE/REVERSIBLE AIRLOCK

CB PNEUMATICS- DI BLOWER PROTECTION

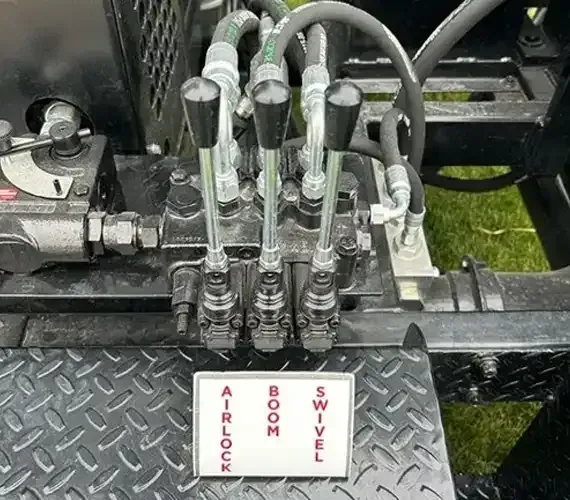

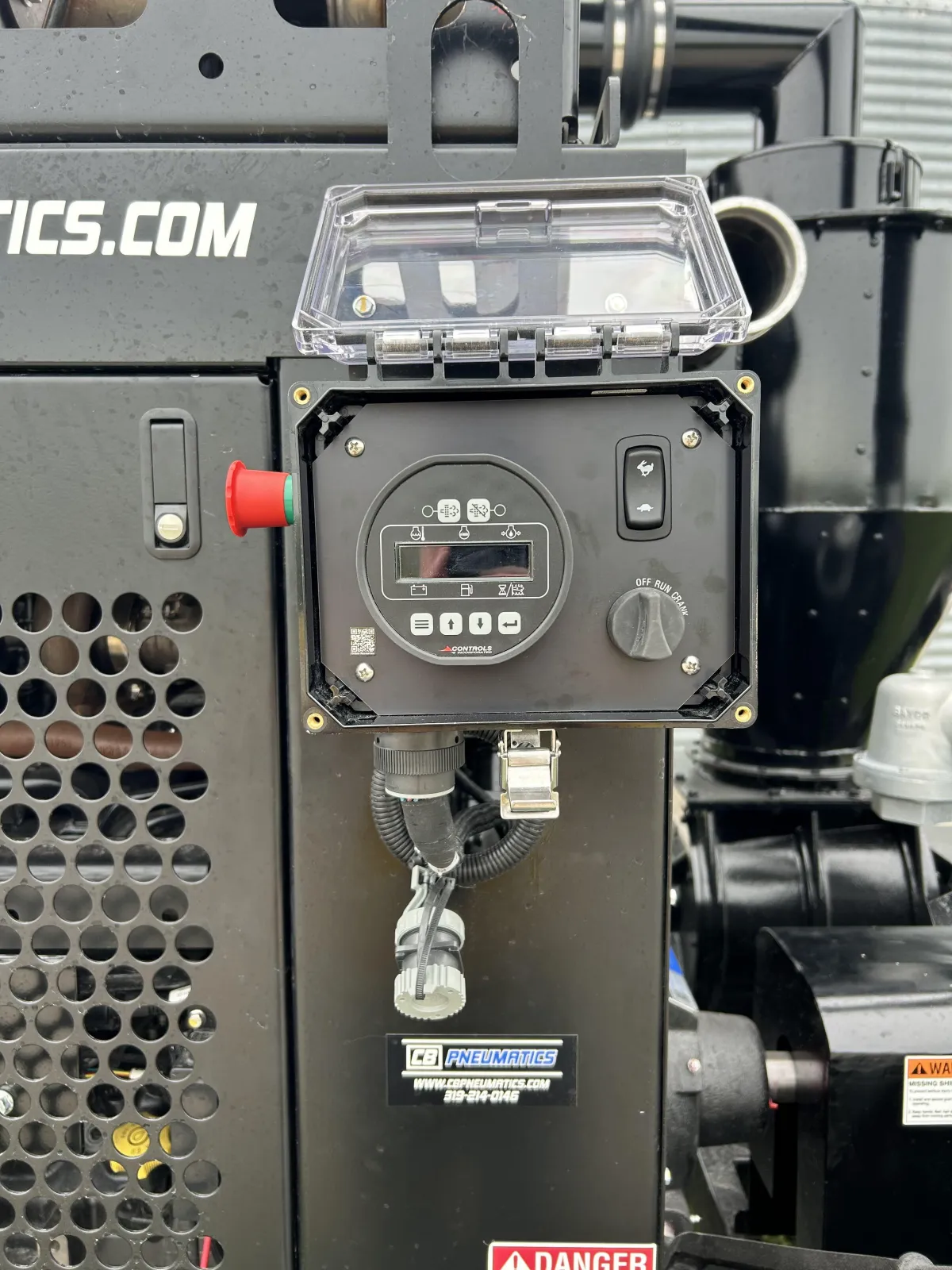

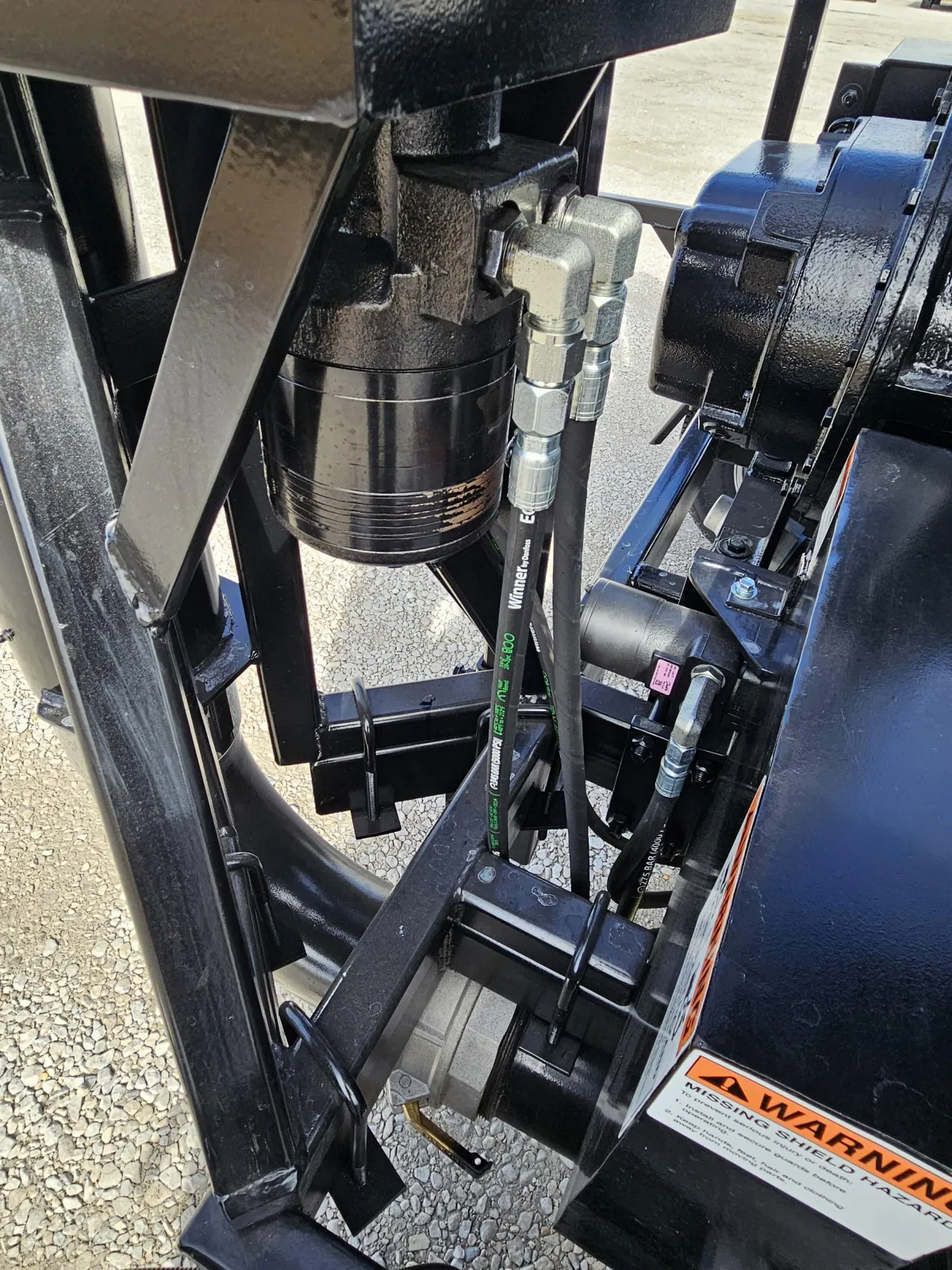

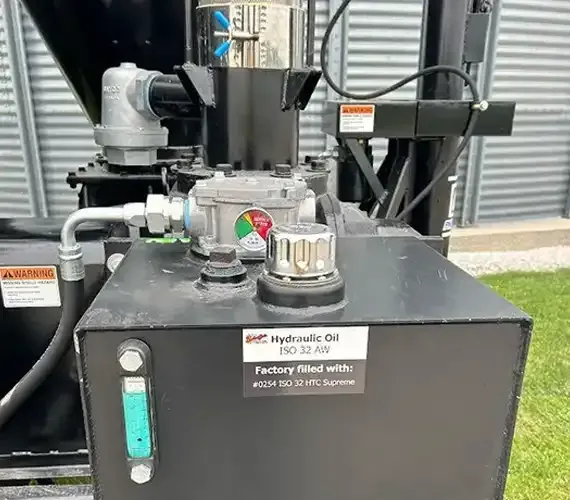

SELF CONTAINED HYDRAULIC AIRLOCK/LOADING BOOM ARM

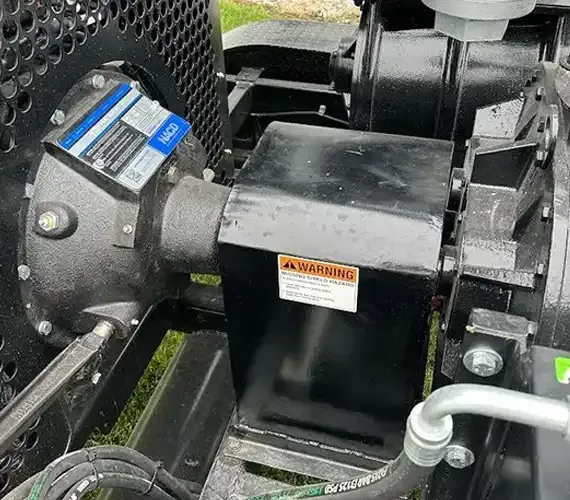

DIRECT DRIVE POWER SYSTEM

65 GALLON DIESEL FUEL TANK

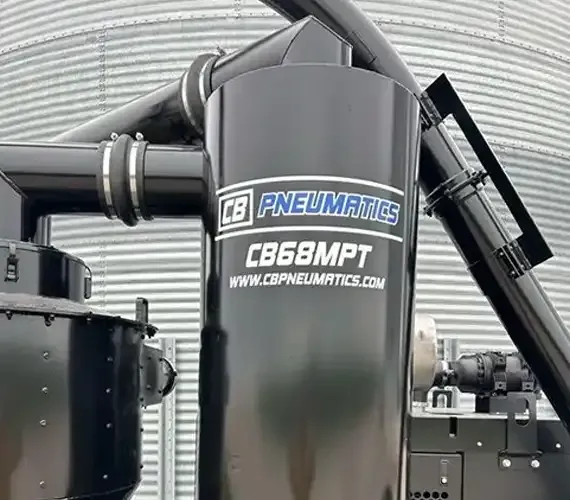

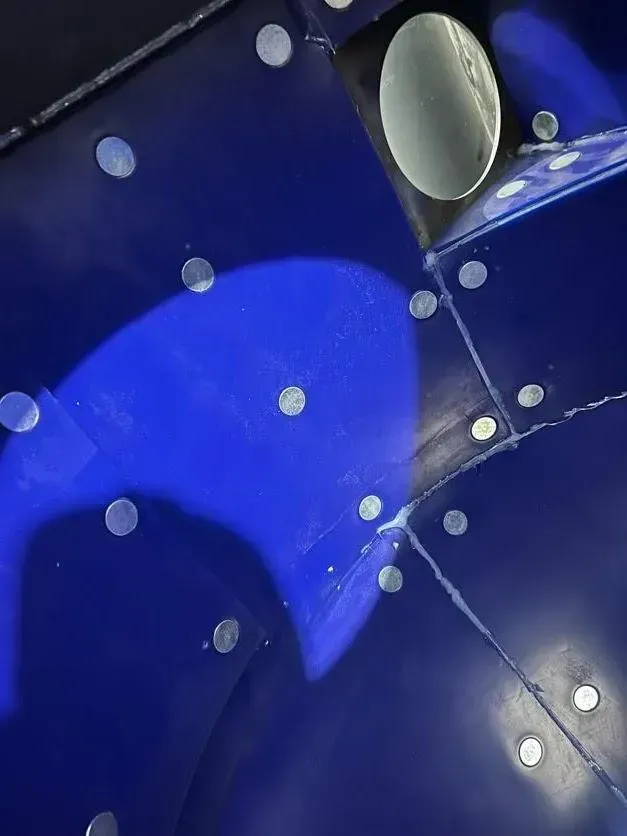

1/4 INCH URETHANE LINED CYCLONES, 1/2 INCH LINED INTAKES

LOAD MATERIAL OUT BOTH SIDES OF GRAIN VAC

(Some Components May Vary Based On Availability)

CB68MPT Diesel Powered Vac Features

CB68MPT Diesel Powered How-To Operate

SPECIFICATIONS

MODEL: CB68MPT

LENGTH:

15' 5"

WIDTH:

8' 2"

TRANSPORT HEIGHT:

12' 2"

LOADING CLEARANCE:

12' 4"

WEIGHT:

8,600 LBS

TONGUE WEIGHT:

1,150 LBS

ENGINE

JOHN DEERE 4.5L POWER UNIT

HORSEPOWER:

160 HP

EMISSIONS:

FINAL TIER 4

CYLINDERS:

4

DISPLACEMENT:

4.5L

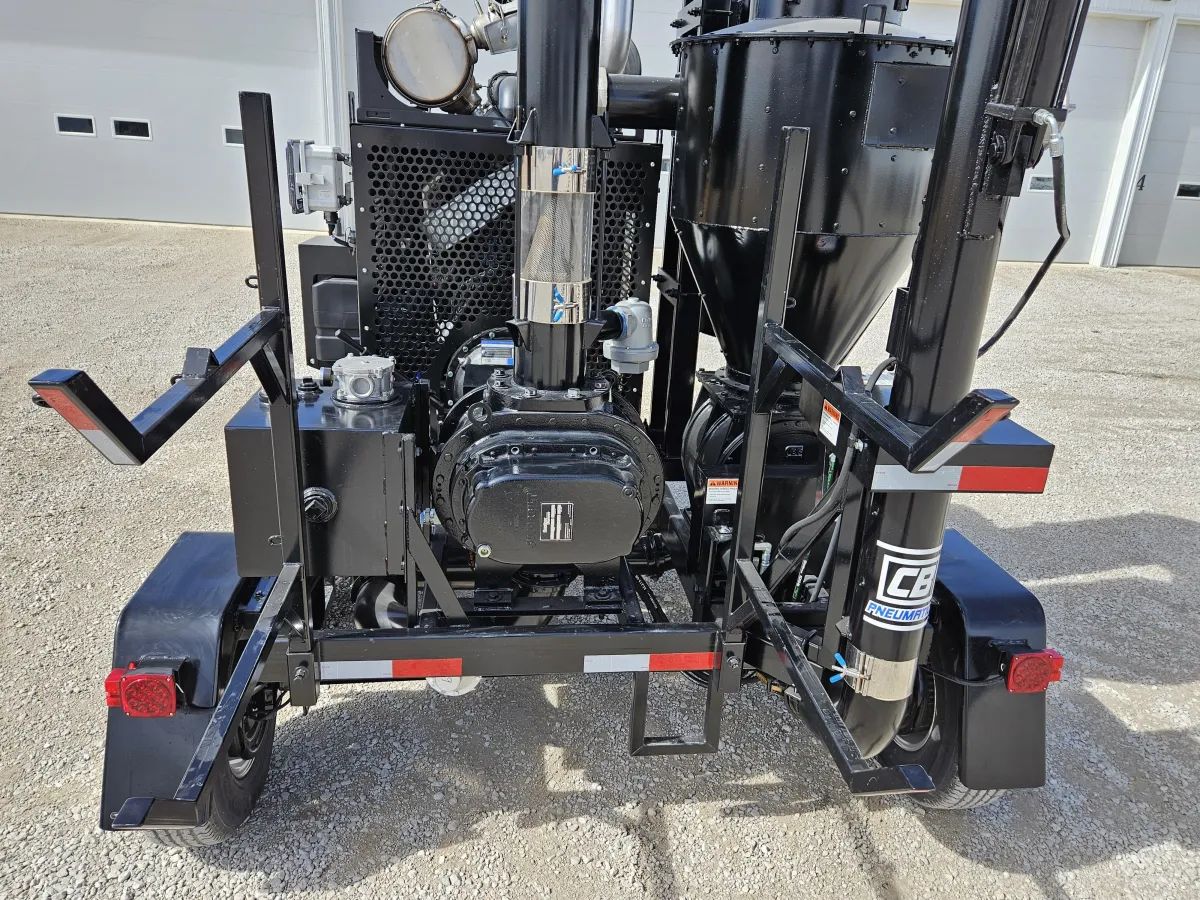

BLOWER

GARDNER DENVER 8MVP BLOWER

RPM:

1,800 RPM

CFM:

1,609 CFM

BHP:

56:65 BHP

DISPLACEMENT:

1.040 CU FT / REV

OUTPUT:

13 "HG

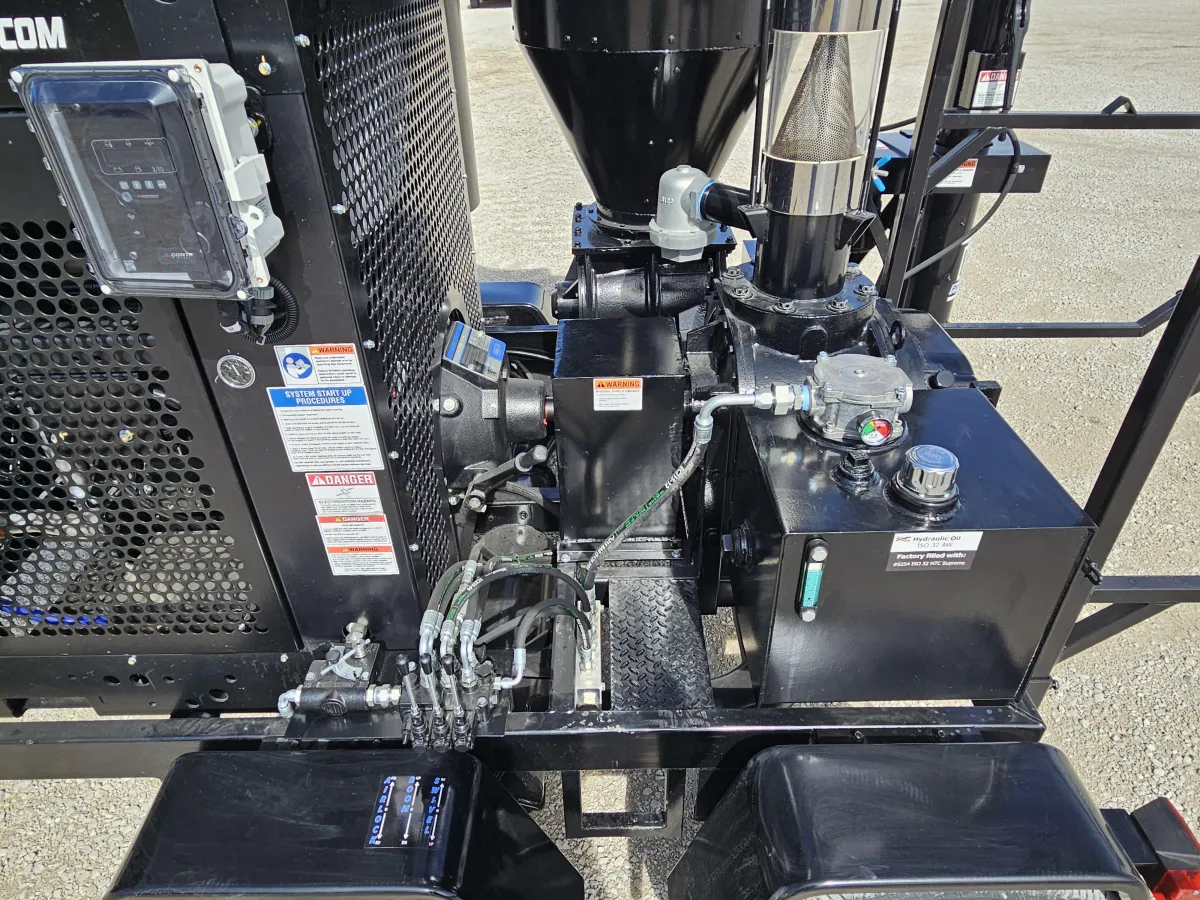

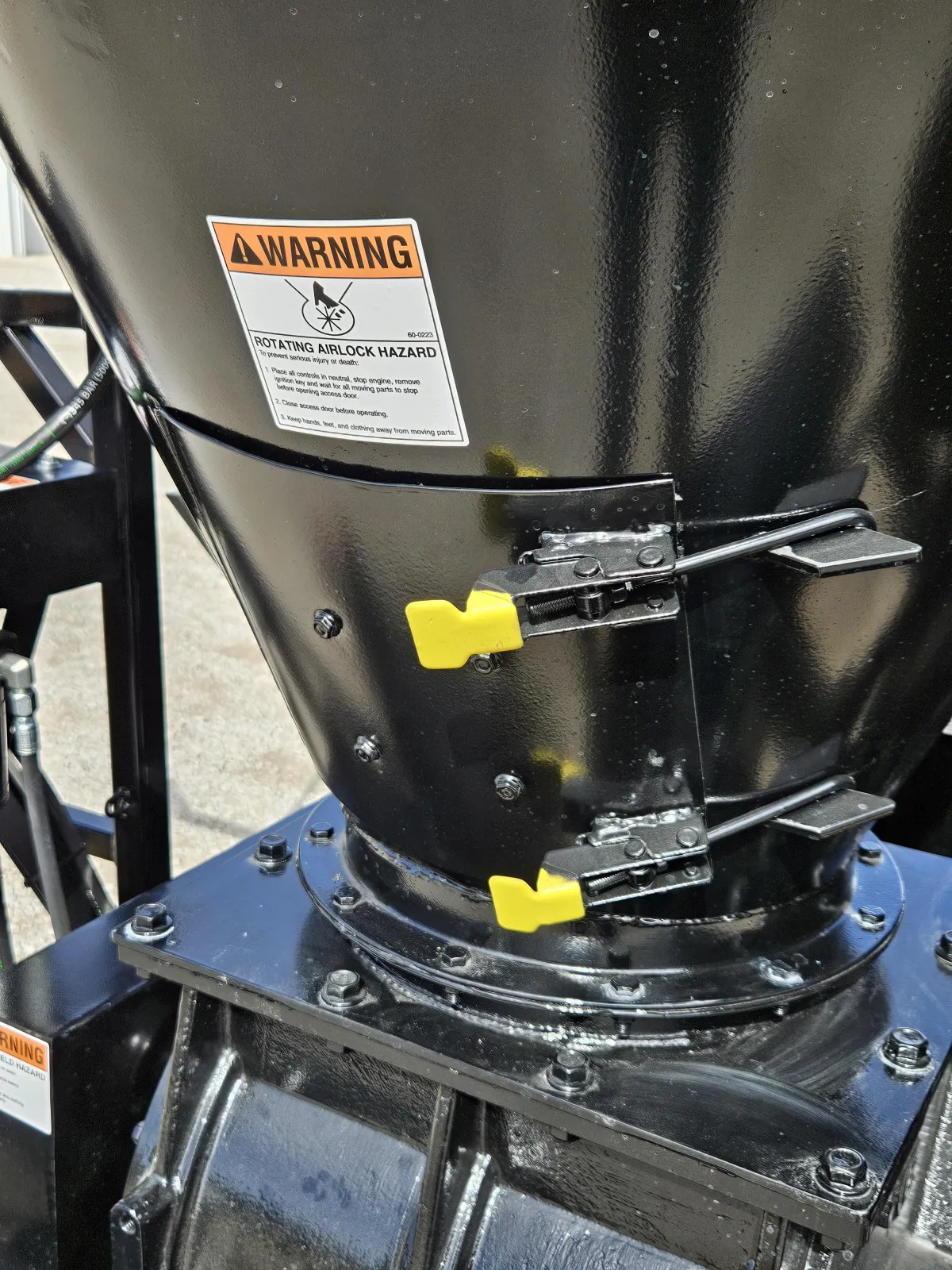

AIRLOCK

CB PNEUMATICS ROTARY AIRLOCK

HOUSING:

HEAVY DUTY STEEL CASTING

ROTORS:

8 ROTORS WITH ADJUSTABLE TIPS

VOLUME:

1.74 CU FT / REV

RPM:

40 RPM

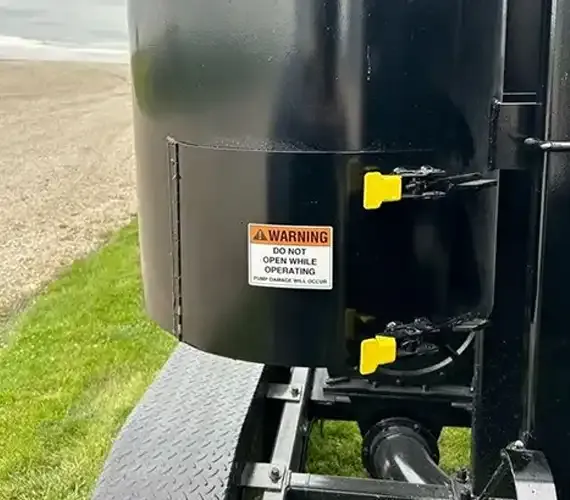

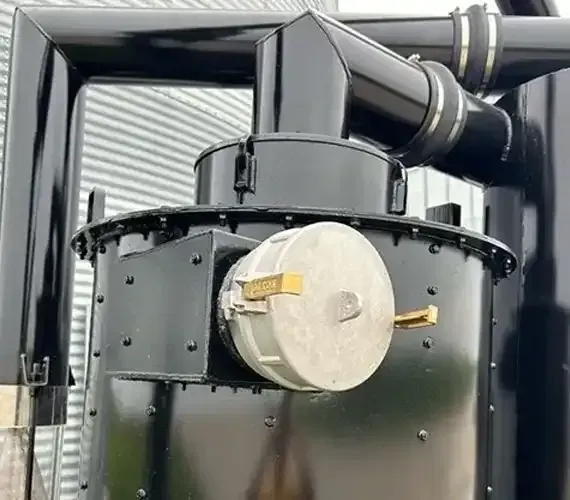

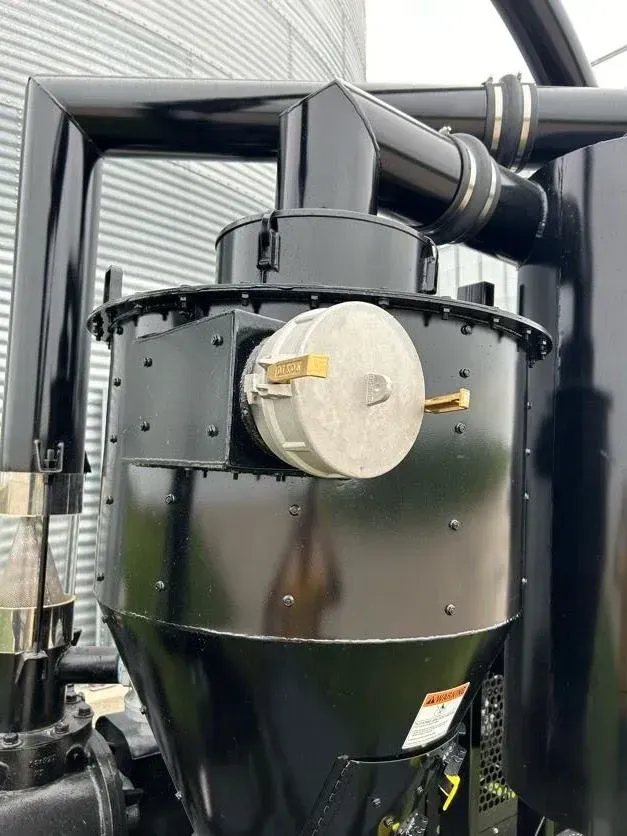

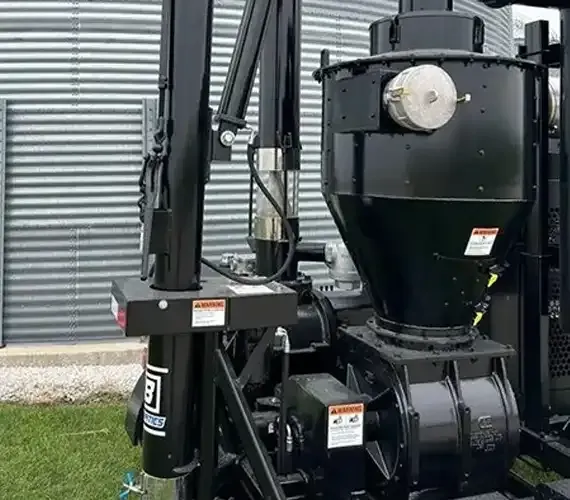

DUST FILTER

CB PNEUMATICS DUST FILTER

SEPARATING FORCE:

CENTRIFUGAL

VOLUME:

5.72 CU FT

CLEAN OUT:

EVERY 3,000 BU

Are all CP Pneumatic systems inspected for quality?

Yes, all CB Pneumatic systems are inspected for quality. Not only do our units go through a visual inspection, they undergo a preliminary operations analysis. Before delivery, each system handles 2,000 bushel of grain to guarantee your vac is operating at peak performance prior to delivery.

Can you demo a vac prior to purchase?

Yes, you can demo a grain vac prior to purchase by scheduling a demo with our team. On demo day, we will show you how to properly operate and maintain a CP Pneumatics vac system.

What are the main advantages of diesel powered grain vac?

Diesel grain vacs provide many advantages, including high power output and reliability, they can run continuously for longer periods, are portable and perform well in remote or off-grid locations.

What are the maintenance requirements for diesel powered grain vacs?

Regular maintenance includes engine oil and filter changes, fuel filter and air-intake filter replacement, inspection of belts and hoses and general engine upkeep. Proper maintenance helps ensure reliability and long life. If you have service or maintenance questions, please reach out!

Does a diesel system need an external power source?

No, a diesel system doesn’t need an external power source because the system runs on its own diesel engine, no external electrical power is needed. This independence allows operation in remote or off-grid locations.

How do I know if a diesel powered system is the right choice for my operation instead of a PTO driven or truck mounted system?

You’ll want a diesel powered grain vac if:

1. You need maximum portability.

2. You move between multiple farms, bins or remote sites where there is no power unit available.

3. You want the unit to run independently without tying it up to another machine.

4. You prefer a turnkey system that can be truck or trailer mounted and ready to run anywhere.

5. You want to eliminate the risk and liability associated with PTO’s.
