PTO Driven Systems

These units are great for handling grain and other materials with a capacity of over 4,000 BPH. Our vacs are ideal for farmers, elevators, seed companies, ethanol plants, salvage companies, processors, and more.

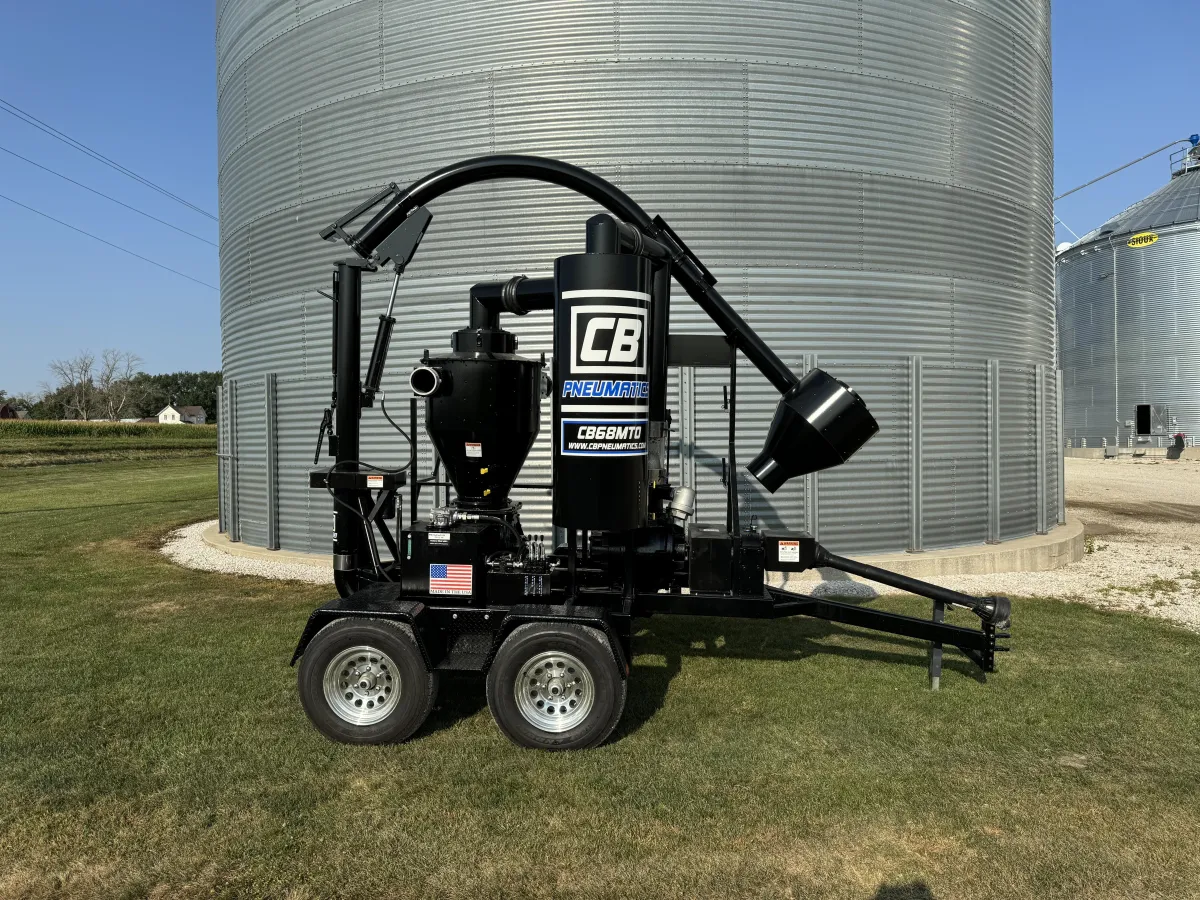

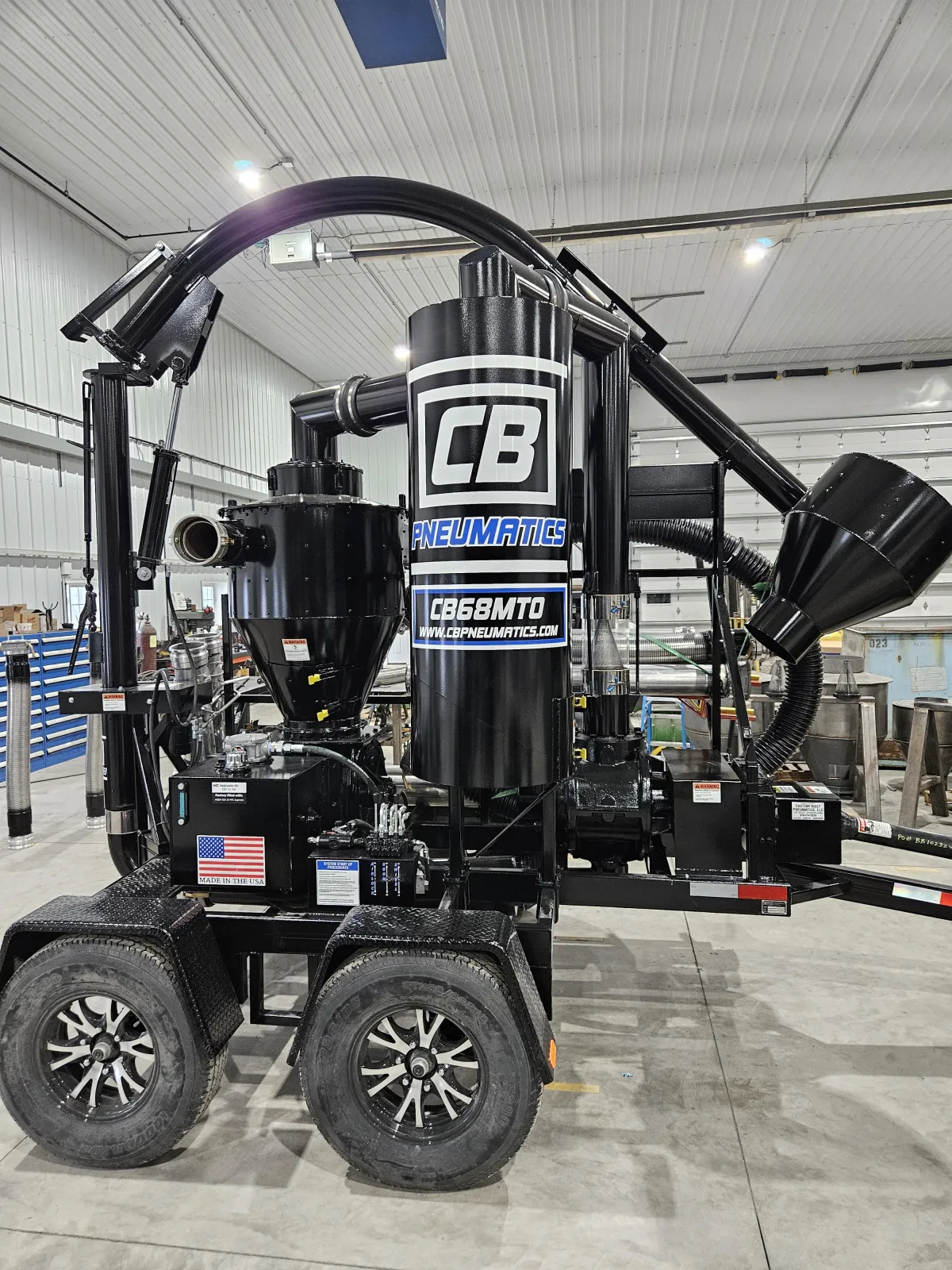

Model CB68MT0 PTO Vac System

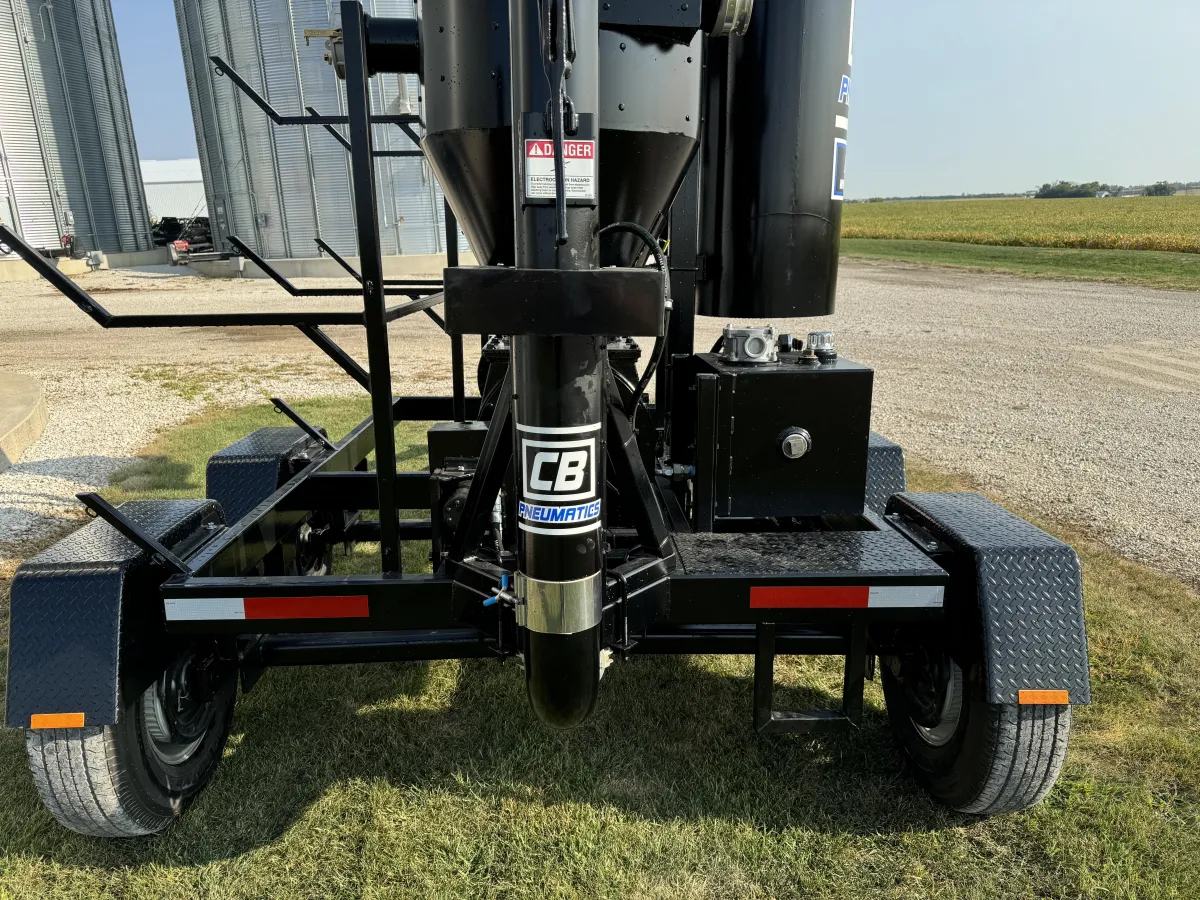

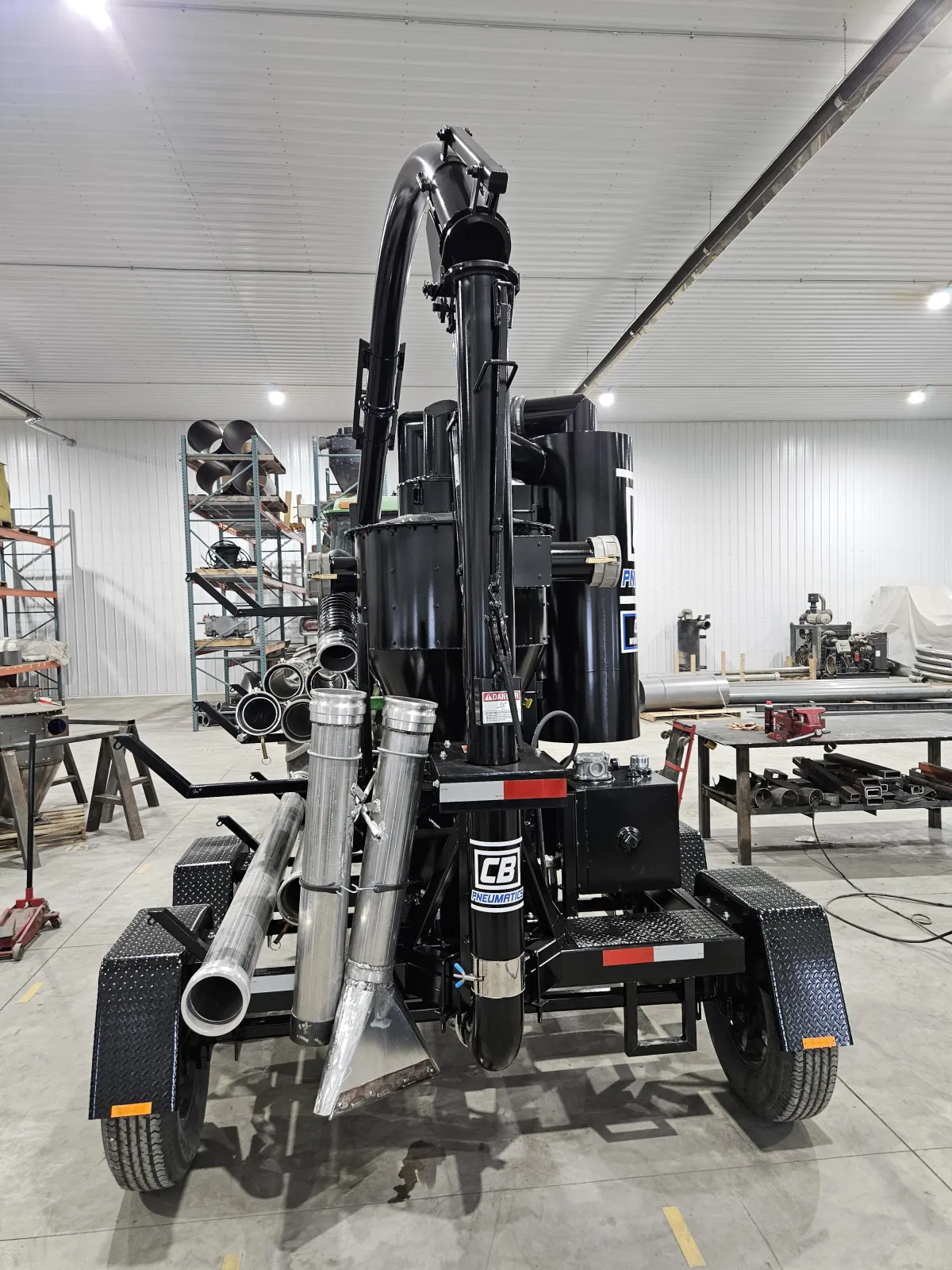

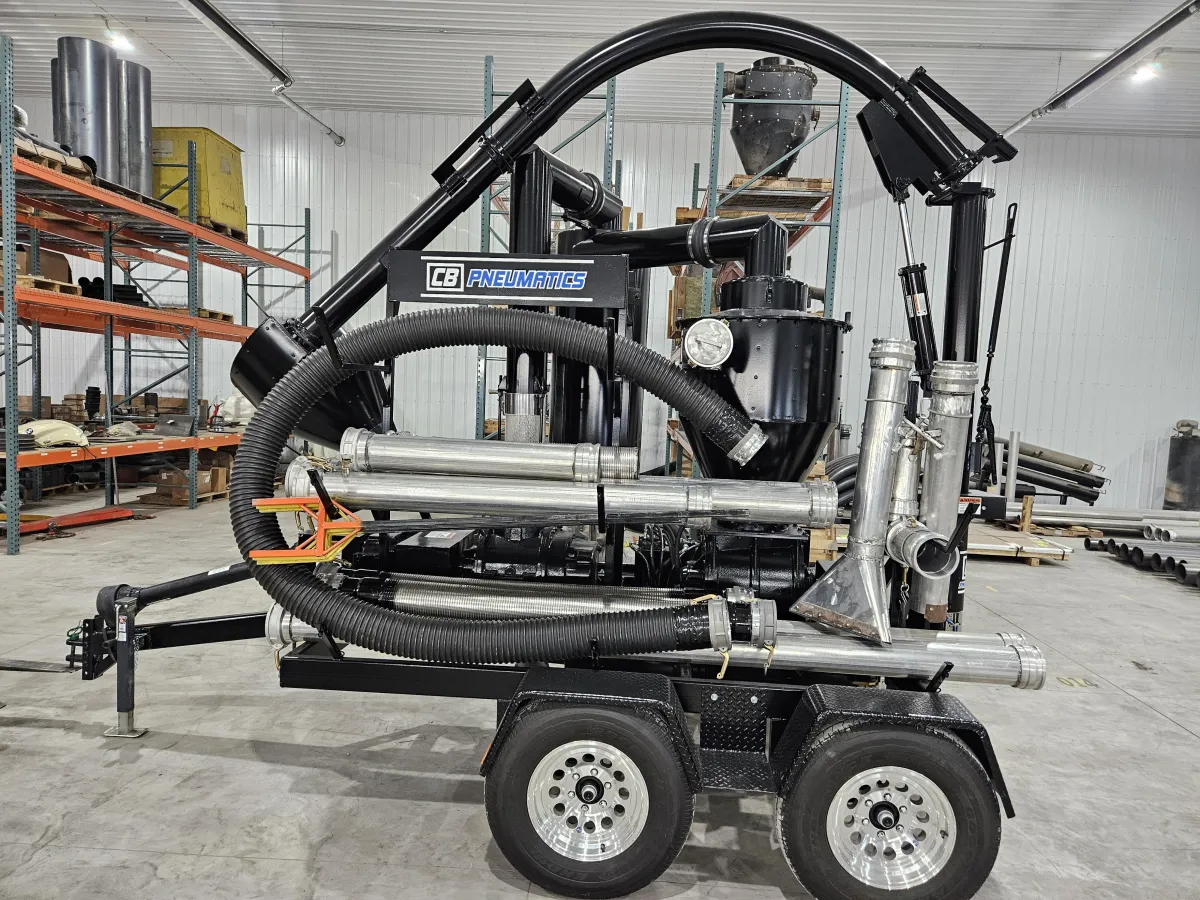

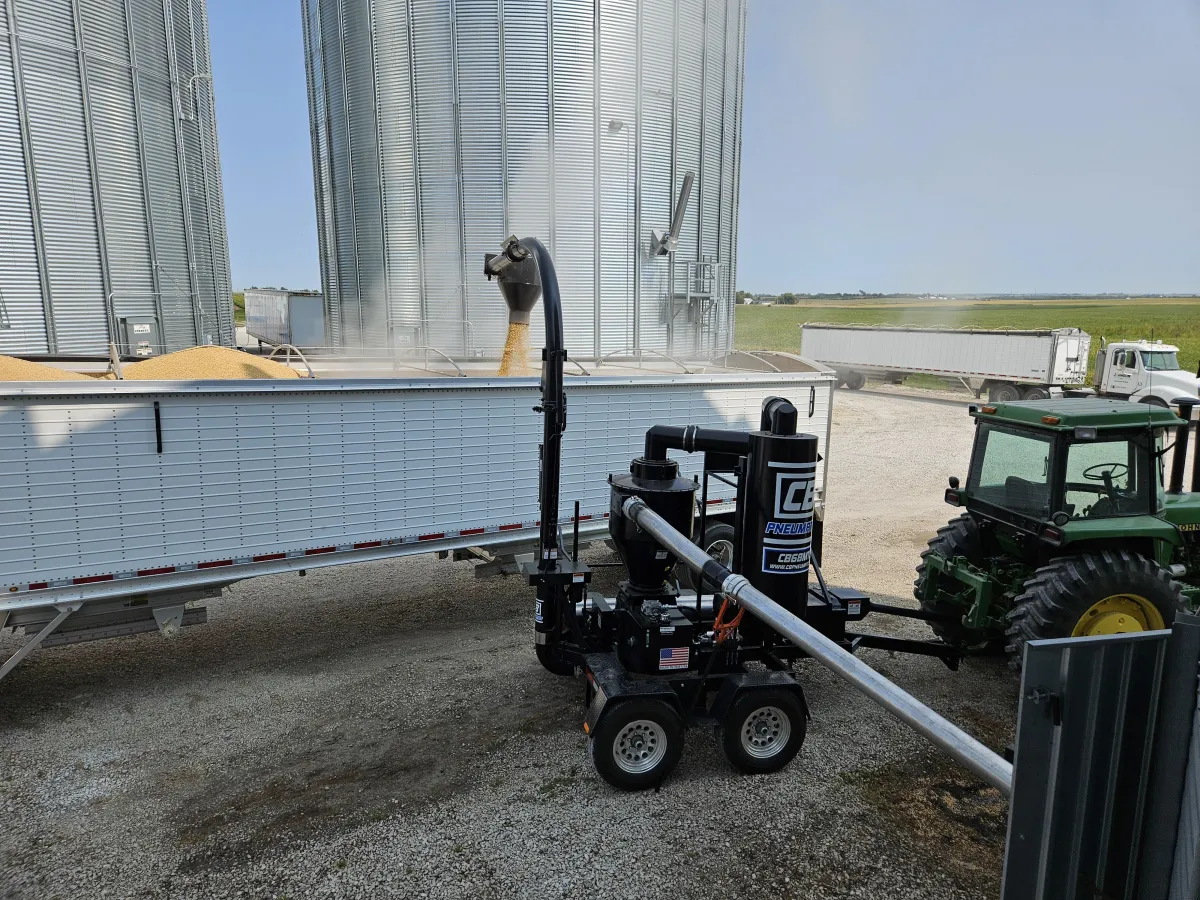

The CB68MTO PTO grain vac is a quiet, compact vacuum system that tows easily down the road. You won't find a vacuum pump on the market that’s easier to operate or maintain. Our direct drive design eliminates belt realignment and boosts operator safety. Hydraulic controls simplify the loading arm and airlock. Operators can unload from three sides, choose dual inlet options, and transfer material directly into a pit—making it a versatile solution for pneumatic pumping and transferring.

TWIN DISC PUMP DRIVE, 1000/1800RPM

GARDNER DENVER- LEGEND SERIES 8MVP PUMP, 1800RPM

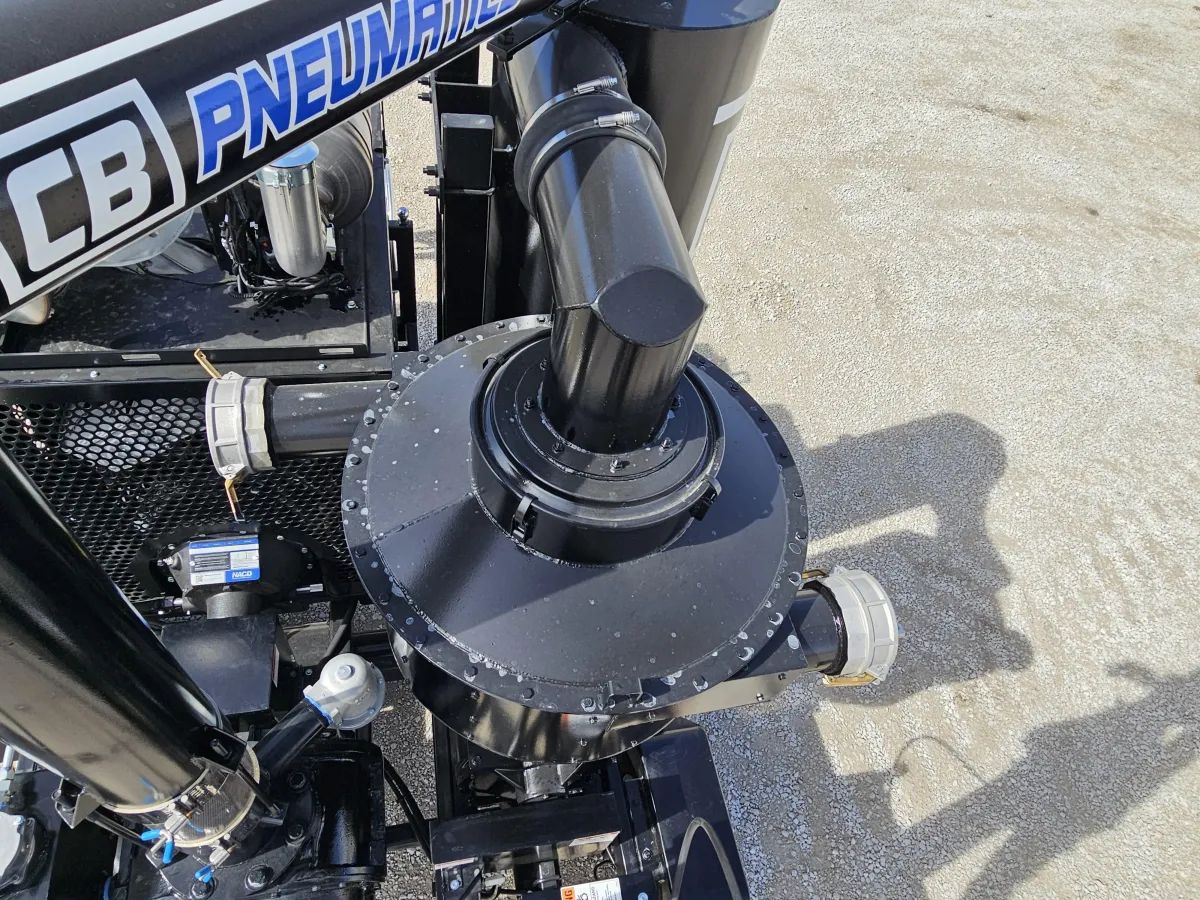

CB PNEUMATICS- ADJUSTABLE/REVERSIBLE AIRLOCK

CB PNEUMATICS- DI BLOWER PROTECTION

CB PNEUMATICS- PIPE RACK STORAGE SYSTEM

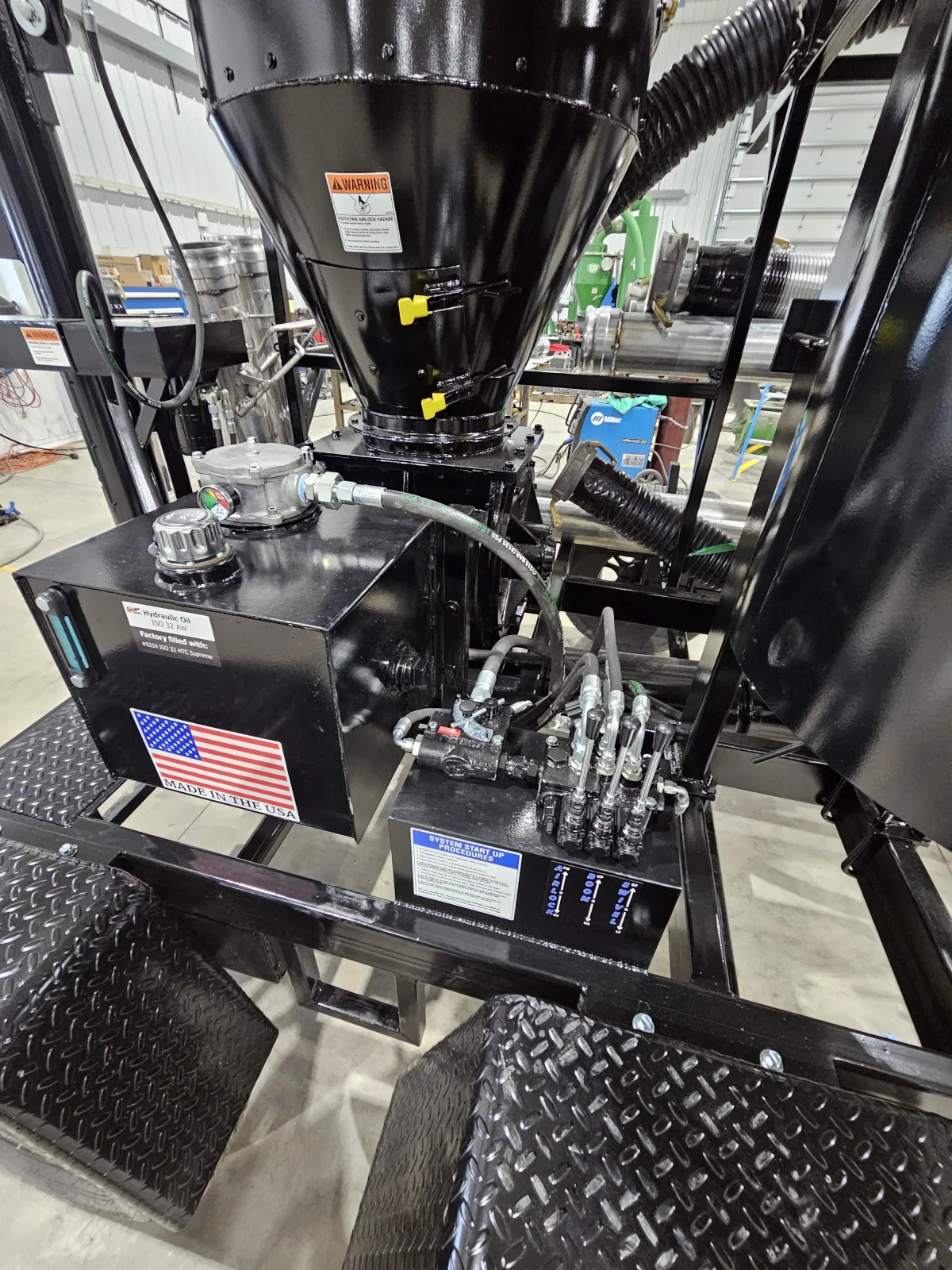

SELF CONTAINED HYDRAULIC AIRLOCK/LOADING BOOM ARM

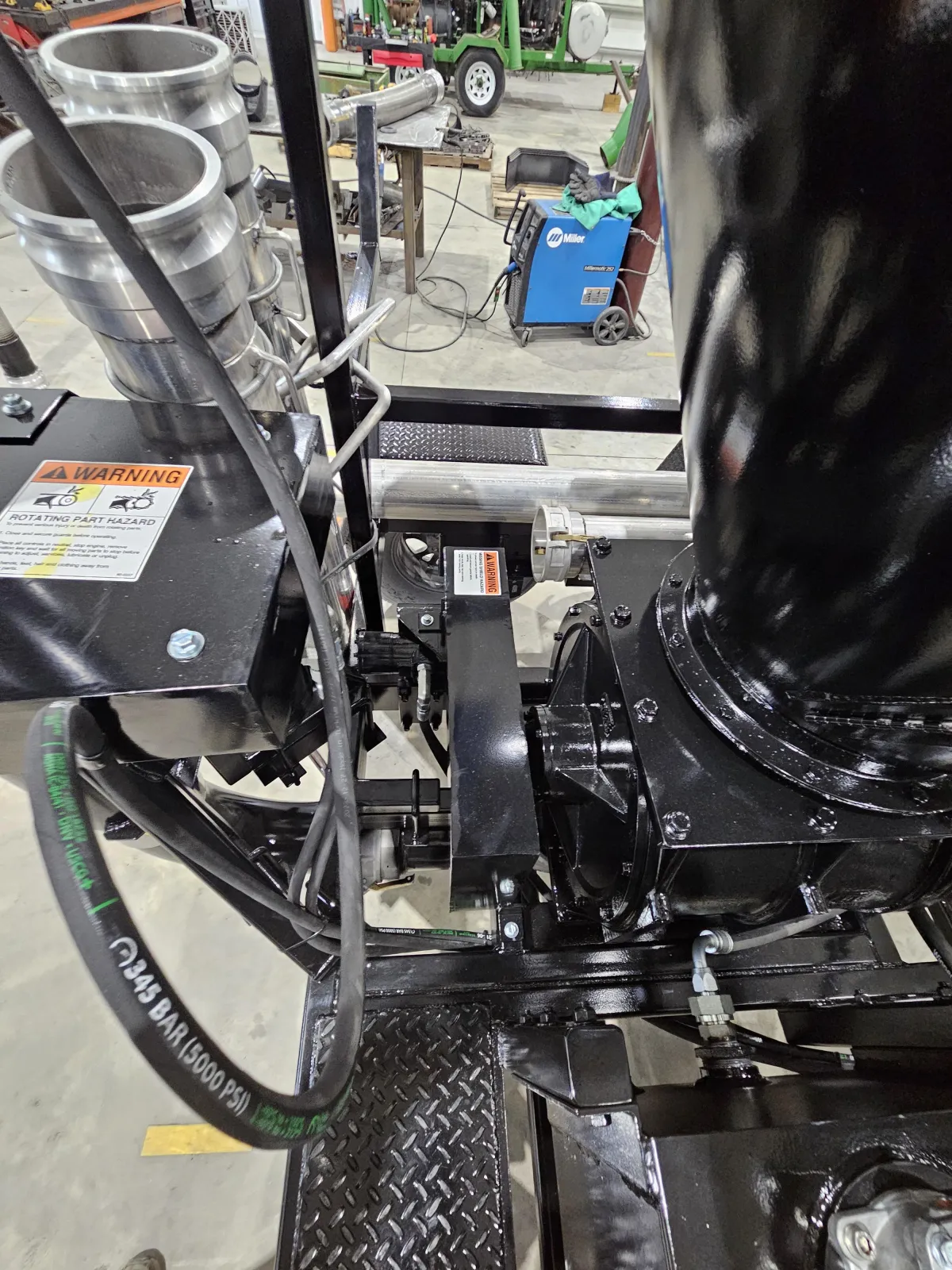

DIRECT DRIVE POWER SYSTEM

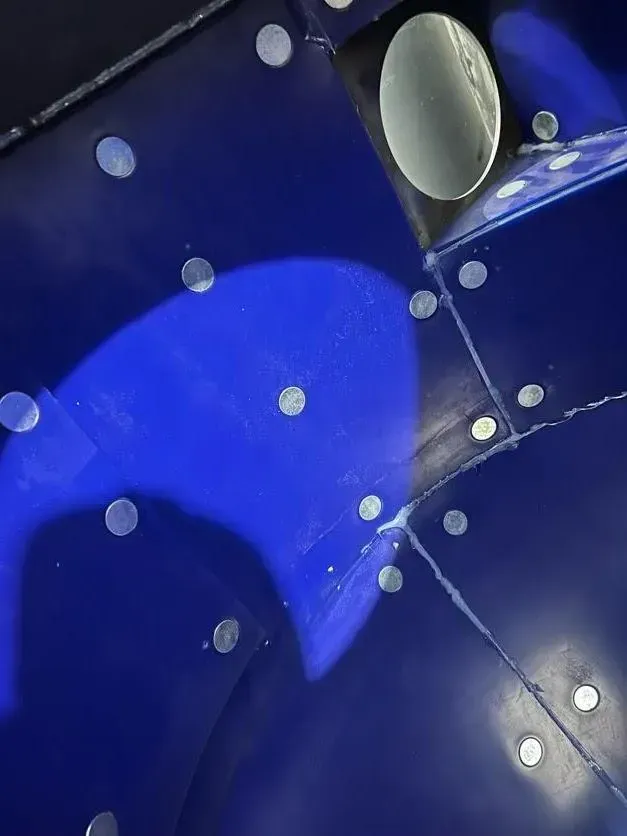

1/4 INCH URETHANE LINED CYCLONES, 1/2 INCH LINED INTAKES

CENTER MOUNTED LOADING BOOM ARM

(Components May Very Based On Availability)

SPECIFICATIONS

MODEL: CB68MTO

LENGTH:

15' 4"

WIDTH:

8' 2"

TRANSPORT HEIGHT:

11' 10"

LOADING CLEARANCE:

12' 4"

WEIGHT:

5,450 LBS

TONGUE WEIGHT:

1,080 LBS

PUMP DRIVE

TWIN DISC AM 220 DRIVE

RATIO:

0.58 : 1

ORIENTATION:

INVERTED

MAX INPUT RPM:

1000 RPM

MAX OUTPUT RPM:

1856 RPM

BLOWER

GARDNER DENVER 8MVP BLOWER

RPM:

1,800 RPM

CFM:

1,609 CFM

BHP:

56:65 BHP

DISPLACEMENT:

1.040 CU FT / REV

OUTPUT:

13 "HG

AIRLOCK

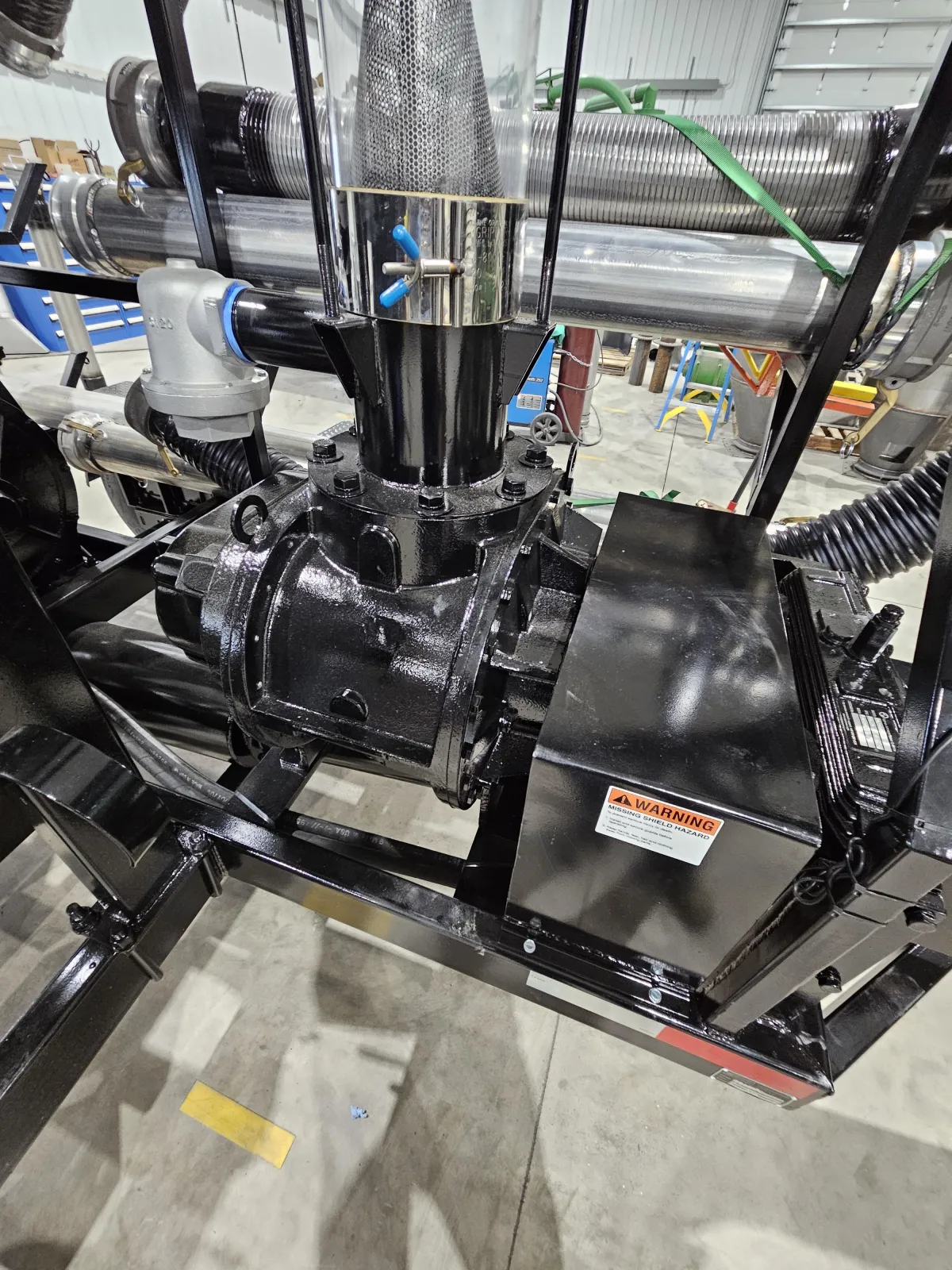

CB PNEUMATICS ROTARY AIRLOCK

HOUSING:

HEAVY DUTY STEEL CASTING

ROTORS:

8 ROTORS WITH ADJUSTABLE TIPS

VOLUME:

1.74 CU FT / REV

RPM:

40 RPM

DUST FILTER

CB PNEUMATICS DUST FILTER

SEPARATING FORCE:

CENTRIFUGAL

VOLUME:

5.72 CU FT

CLEAN OUT:

EVERY 3,000 BU

Frequent Questions

Are all CB Pneumatic systems inspected for quality?

Yes, all CB Pneumatic systems are inspected for quality. Not only do our units go through a visual inspection, they undergo a preliminary operations analysis. Pre-Delivery: Each machine moves 2000+ bushels of grain to guarantee your vac is operating at peak performance prior to delivery.

Can you demo a vac prior to purchase?

Yes, you can demo a grain vac before purchasing by scheduling a demo with our team today. On a demo day, we will show you how to properly operate and maintain a CB Pneumatics vac system.

What are the main advantages of a PTO-driven vacuum system compared to a tow-behind diesel unit?

PTO-driven systems reduce overall weight and eliminate the need for a separate engine to maintain compared to a tow-behind diesel unit.

Will using a PTO system negatively impact my truck’s fuel economy or payload capacity?

Using the PTO draws power from your tractor’s engine, which can slightly increase fuel consumption when compared to a self-contained Diesel Powered unit.

Are PTO systems suitable for outdoor or harsh-environment work such as extreme heat or cold weather, rough terrain or frequent jobsite moves?

Yes, our PTO Vac System can withstand different weather conditions and is compact, making it easy to tow down the road.

How do I know if a PTO system is the right choice for my operation instead of a diesel powered or truck mounted system?

You’ll want to use a PTO grain vac if:

1. You already have a tractor available and want to avoid the cost of a separate engine.

2. Your bins are close to tractor access.

3. You need flexibility to move the machine to multiple bins or barns but don’t need long-distance travel.

4. You want a simpler, cost-effective system.

5. You want less investment upfront when compared to the self-contained Diesel Powered trailer or truck mounted units.
