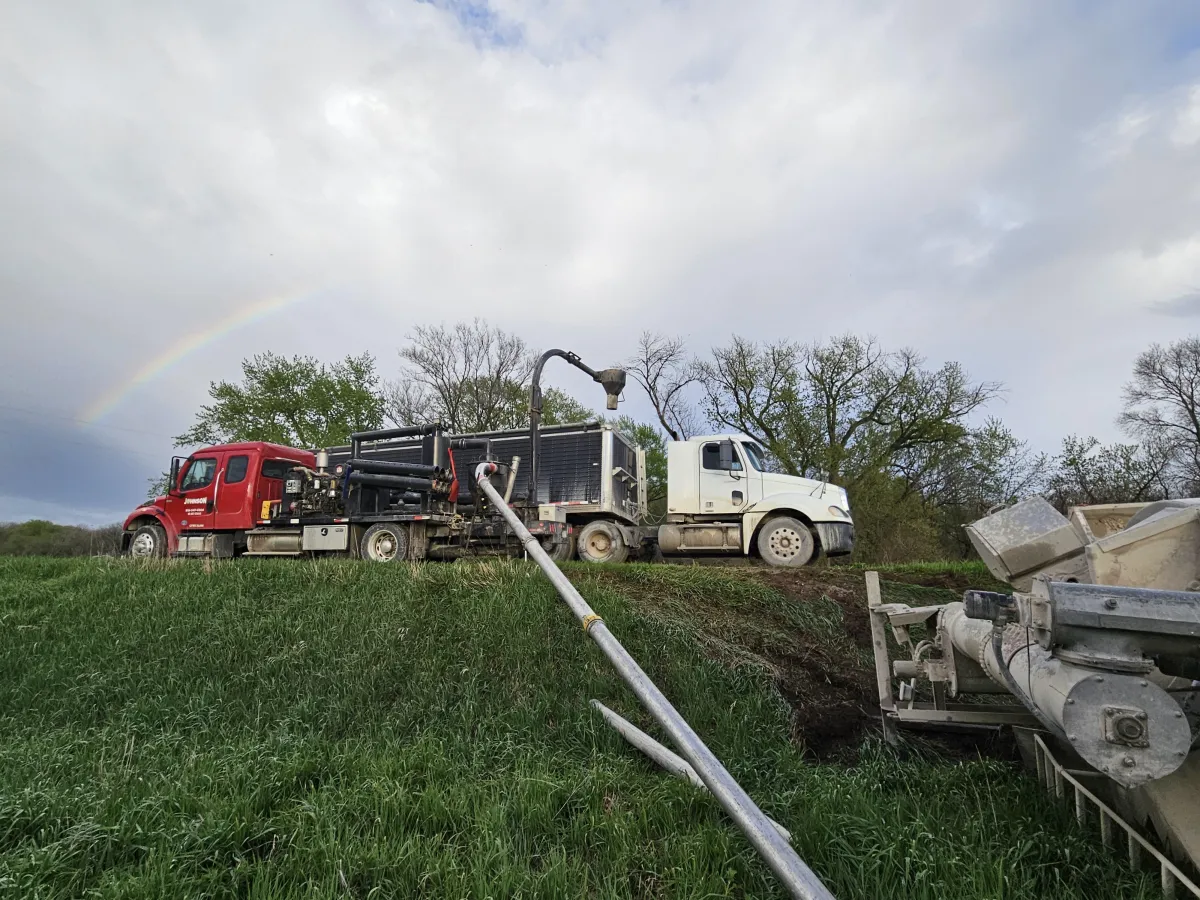

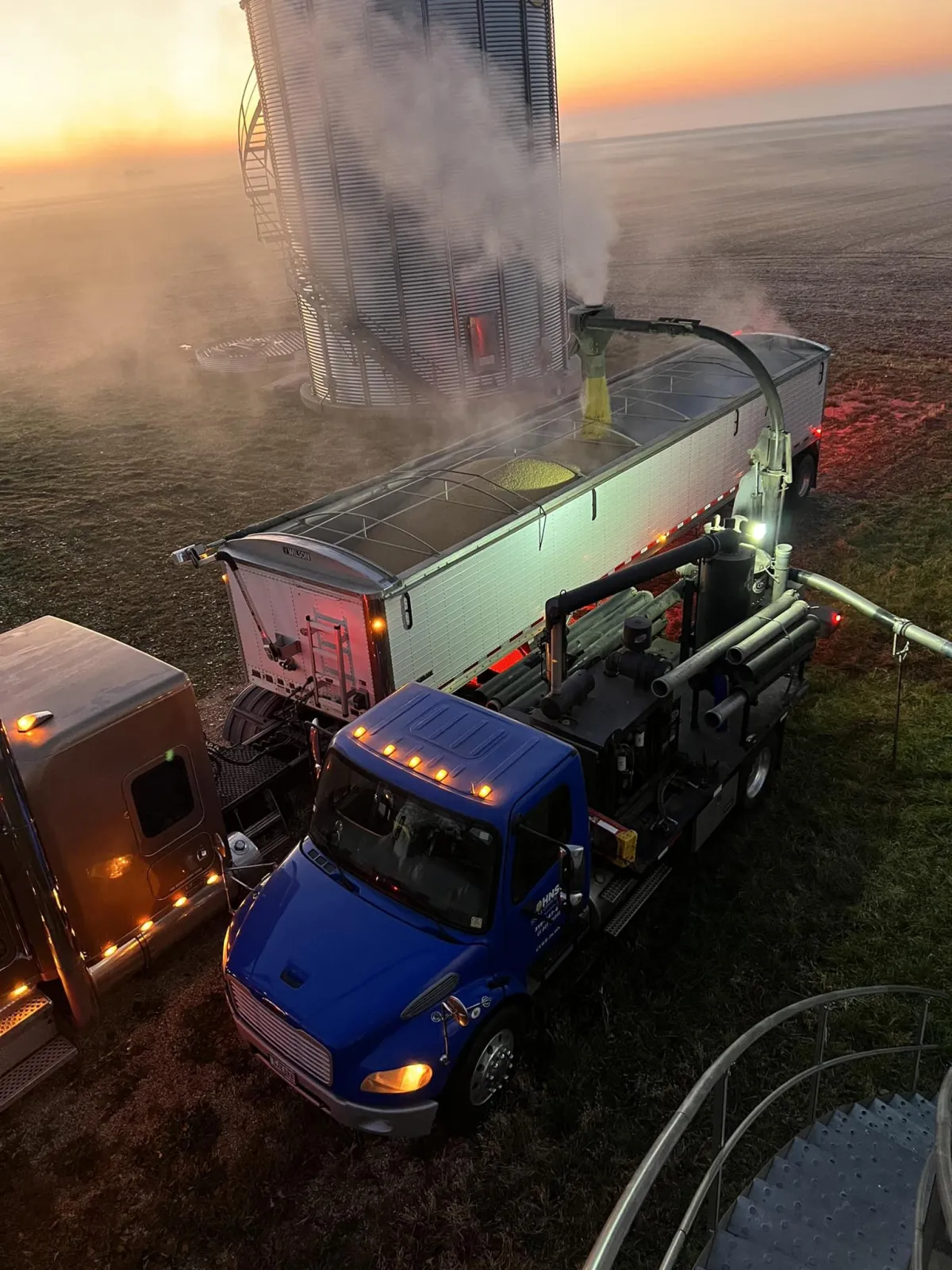

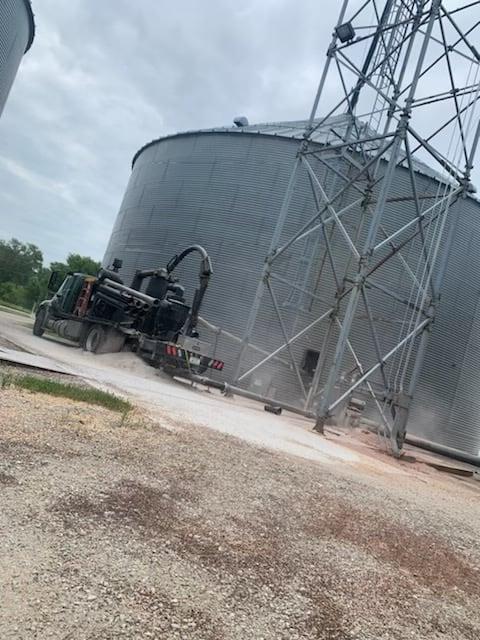

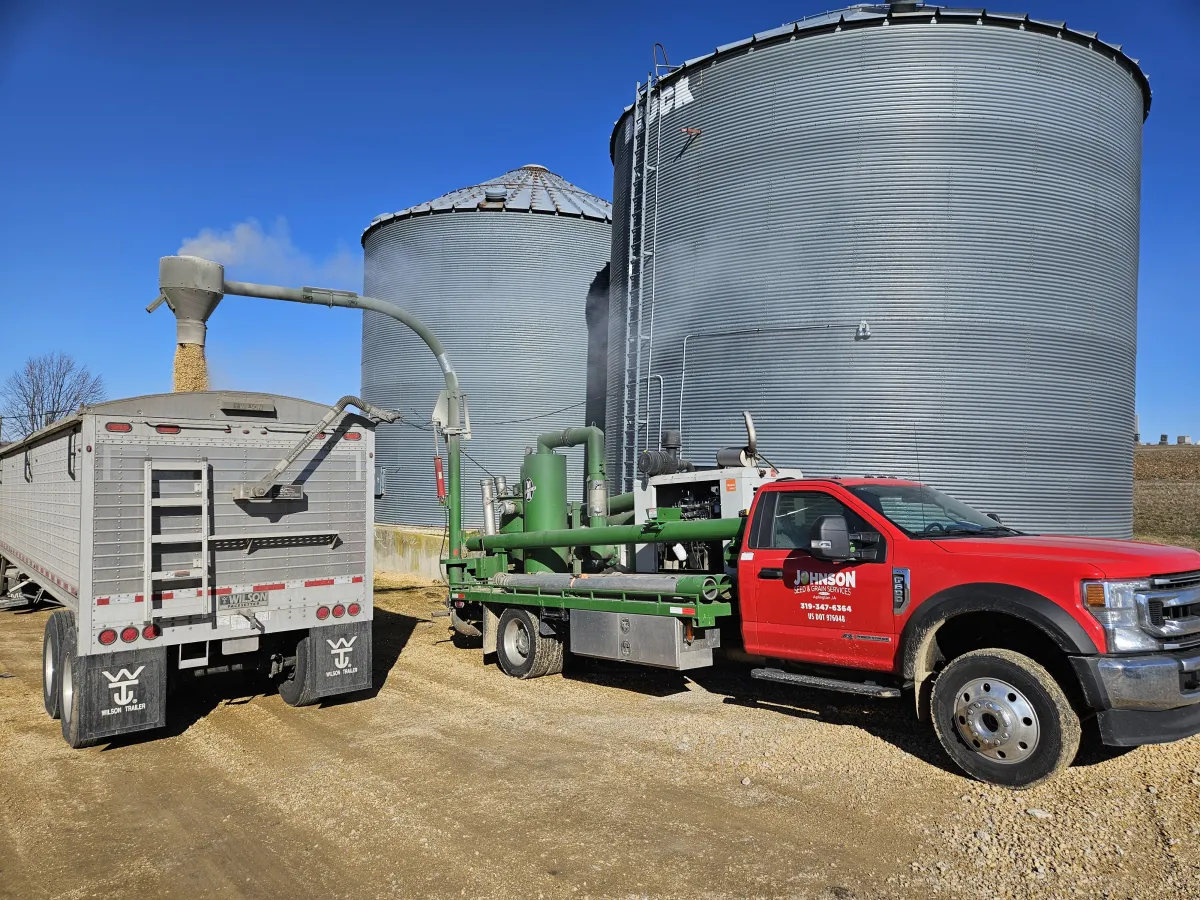

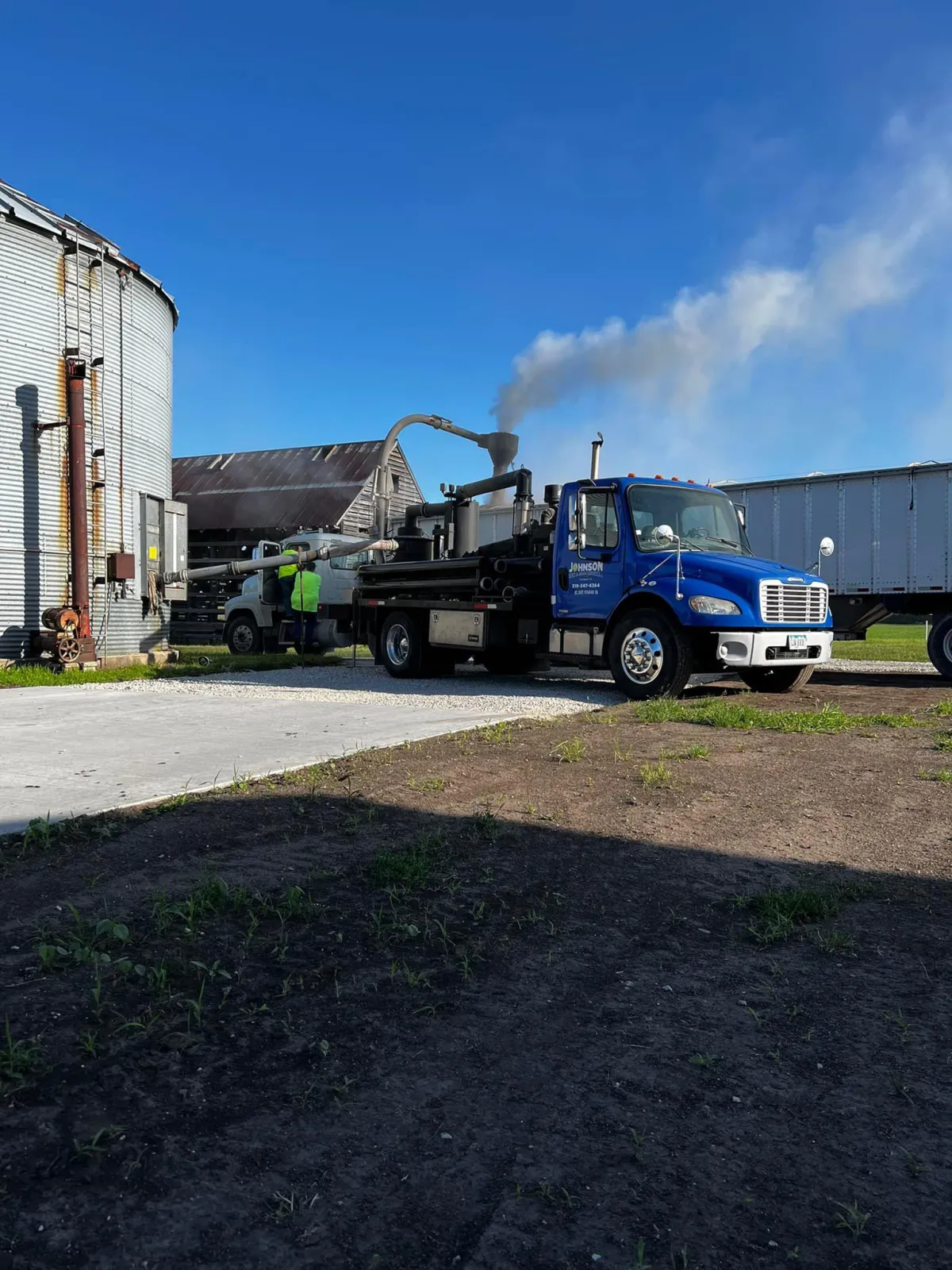

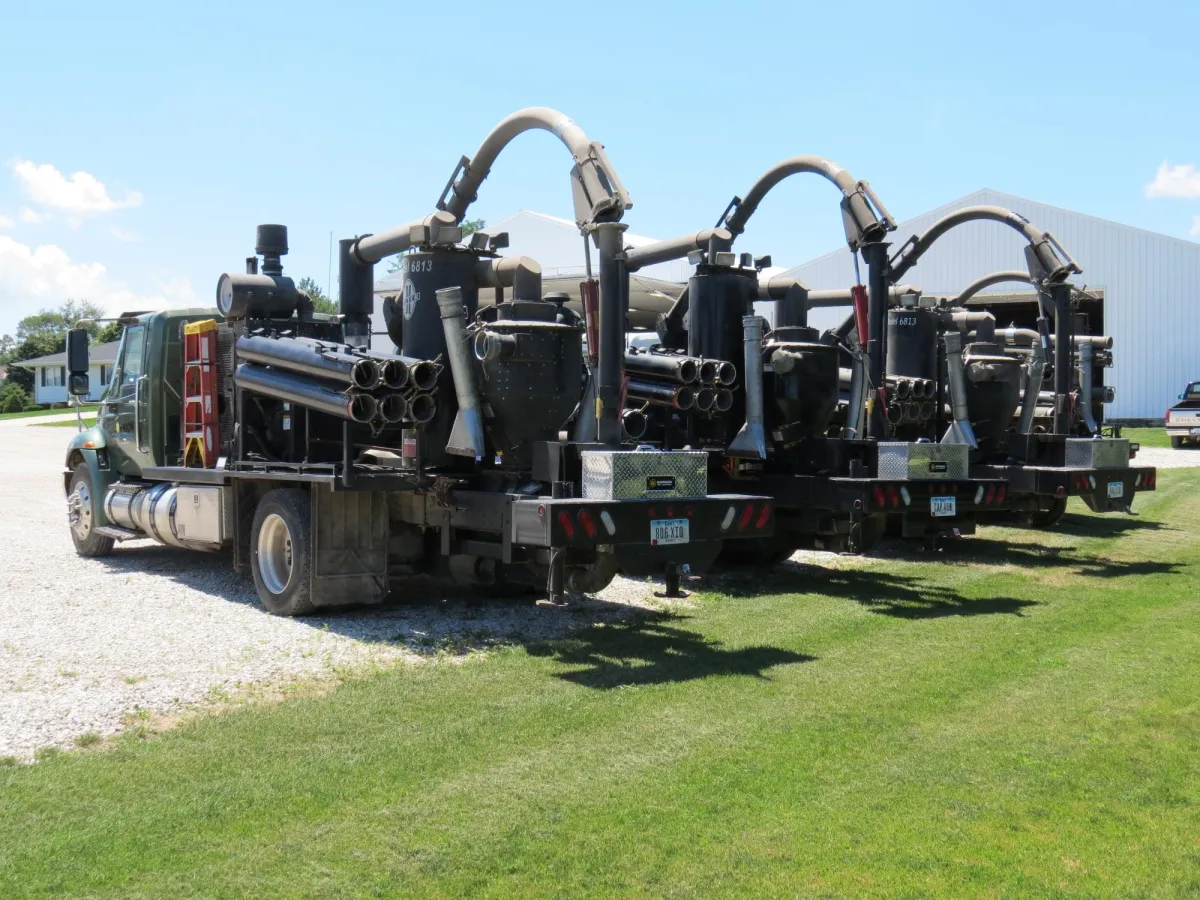

Truck Mounted Systems

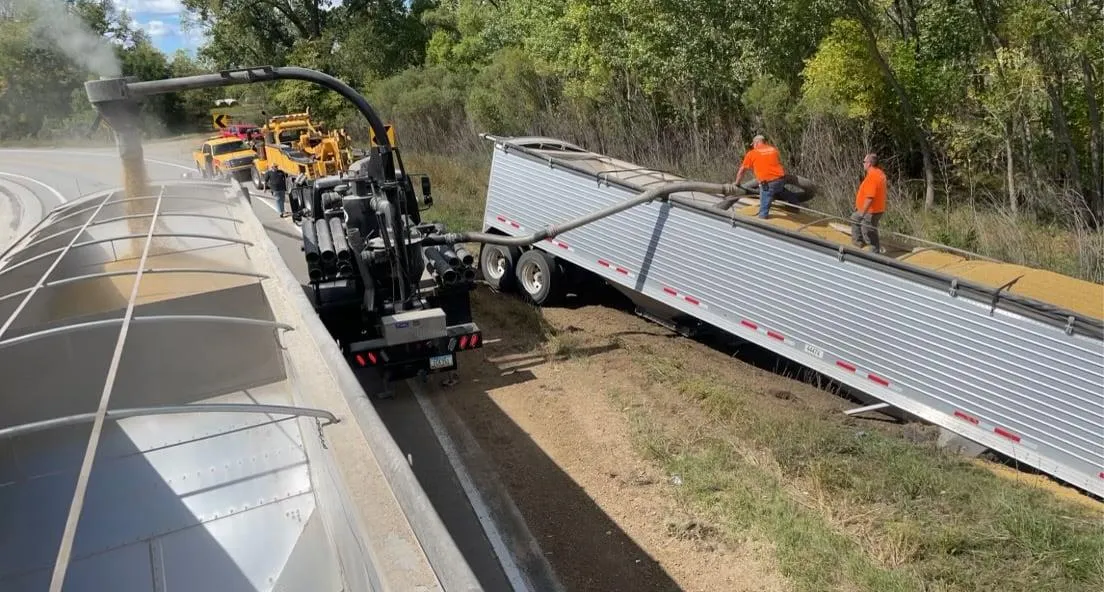

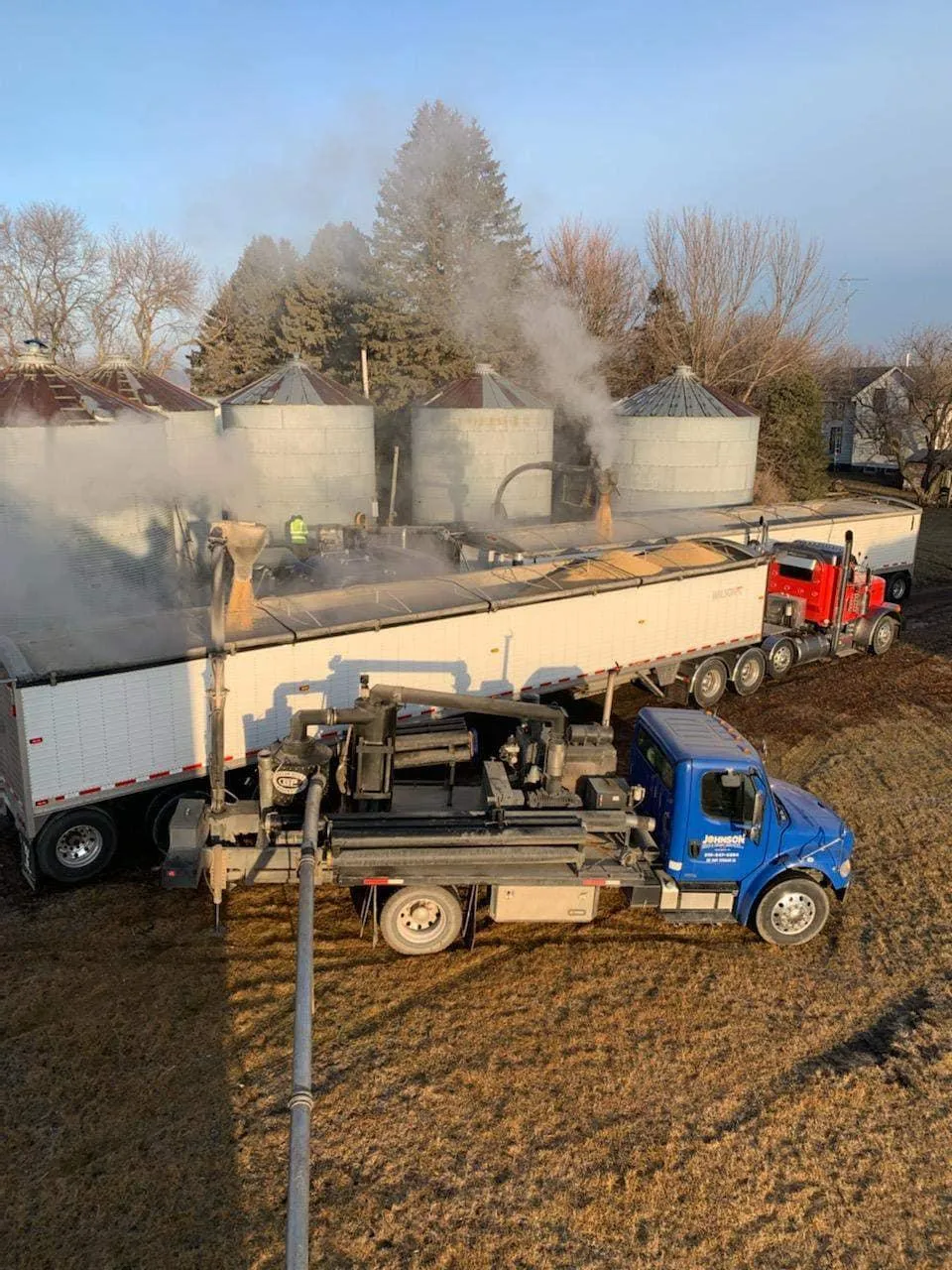

These units are great for handling grain and other materials with a capacity of over 4,000 BPH. Our vacs are ideal for farmers, elevators, seed companies, ethanol plants, salvage companies, processors, and more.

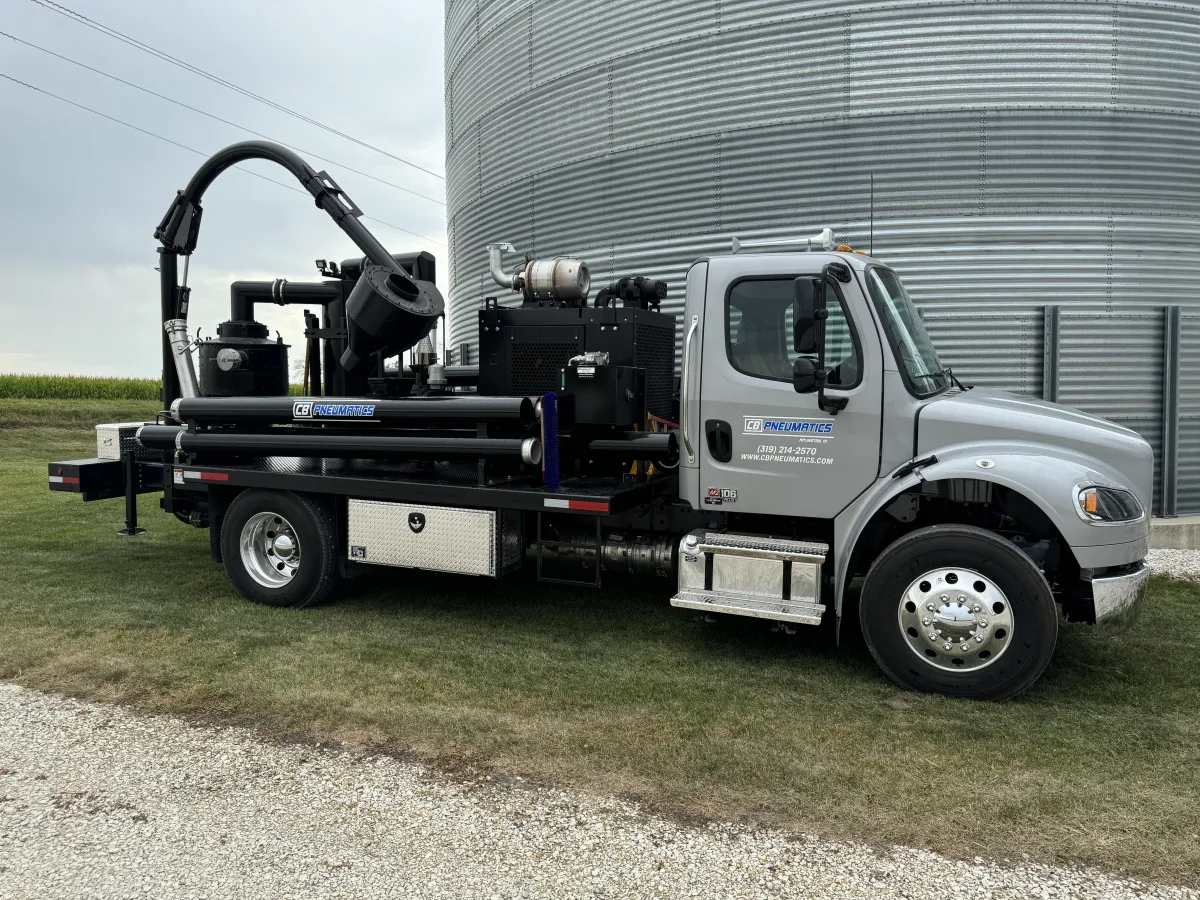

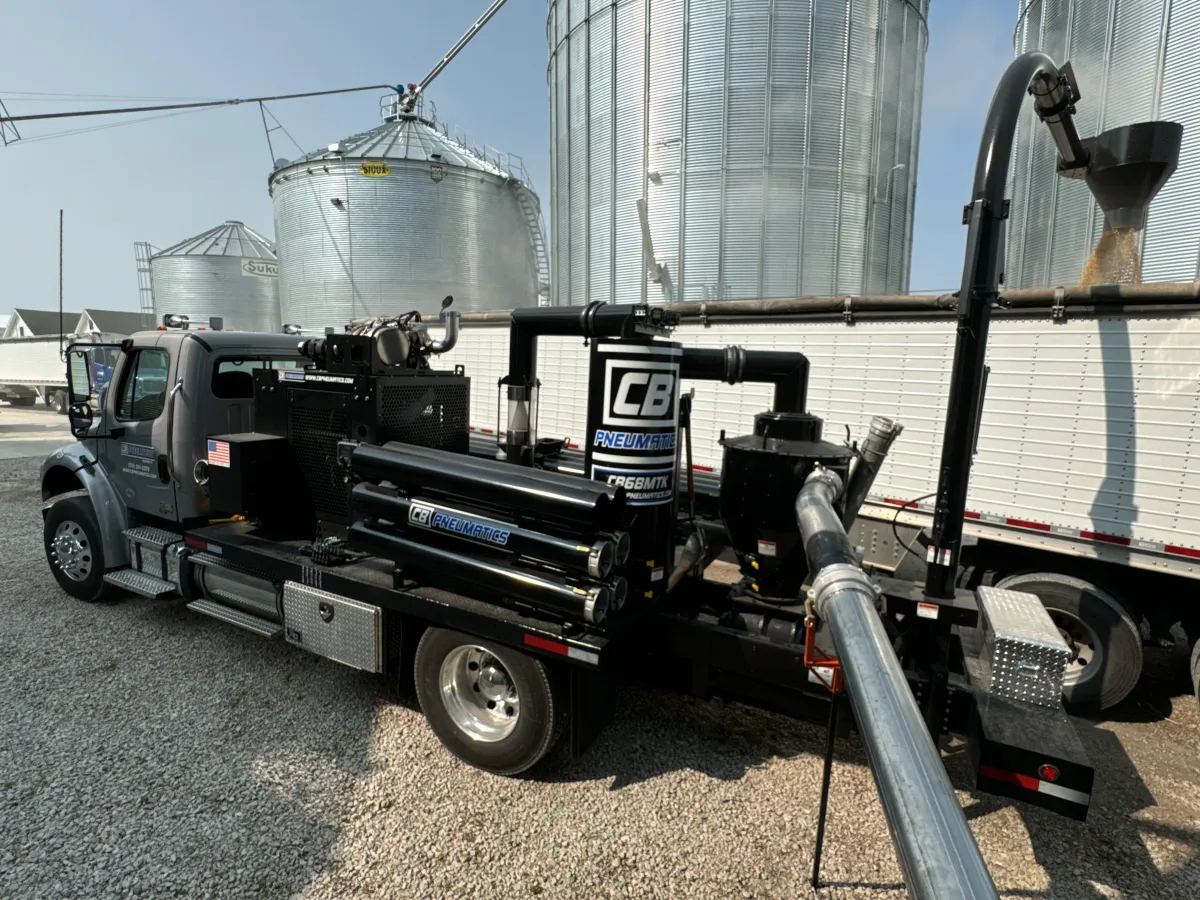

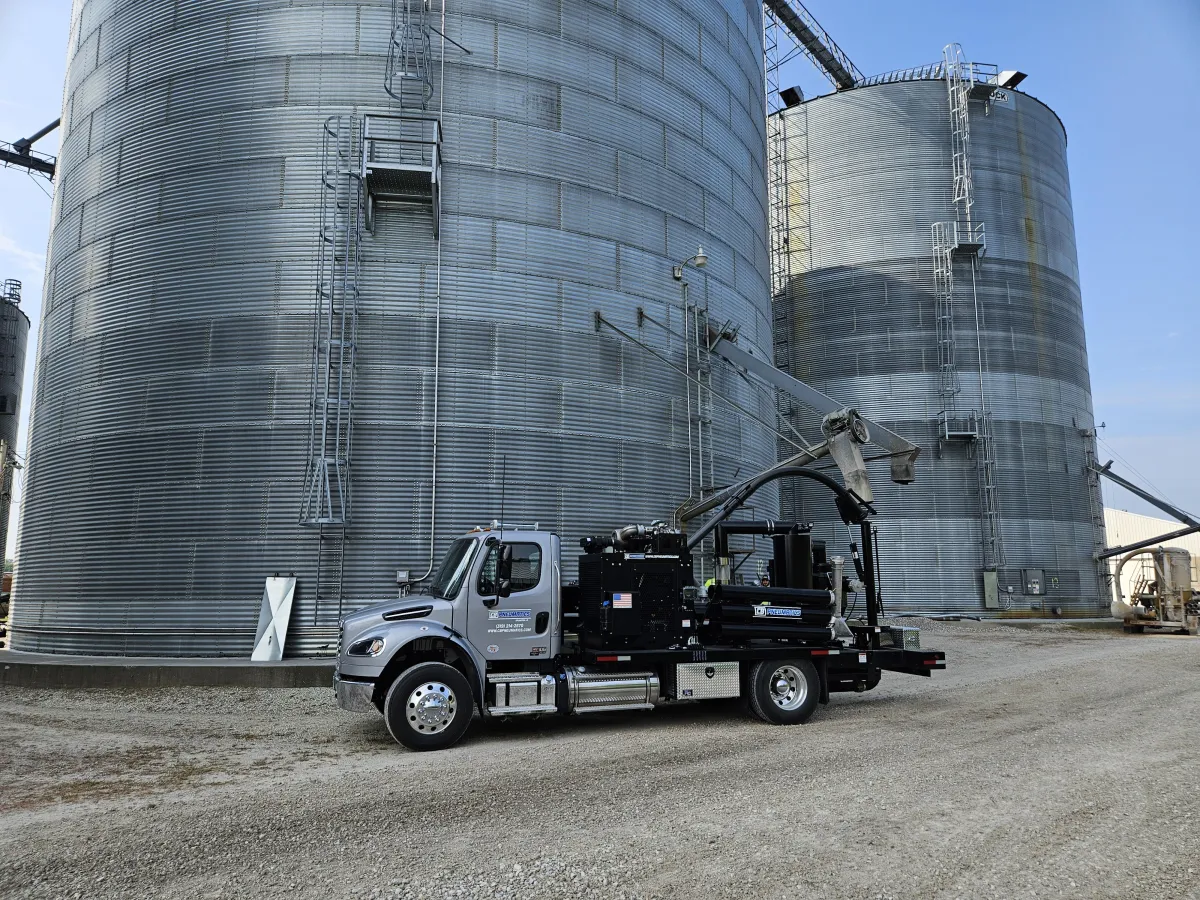

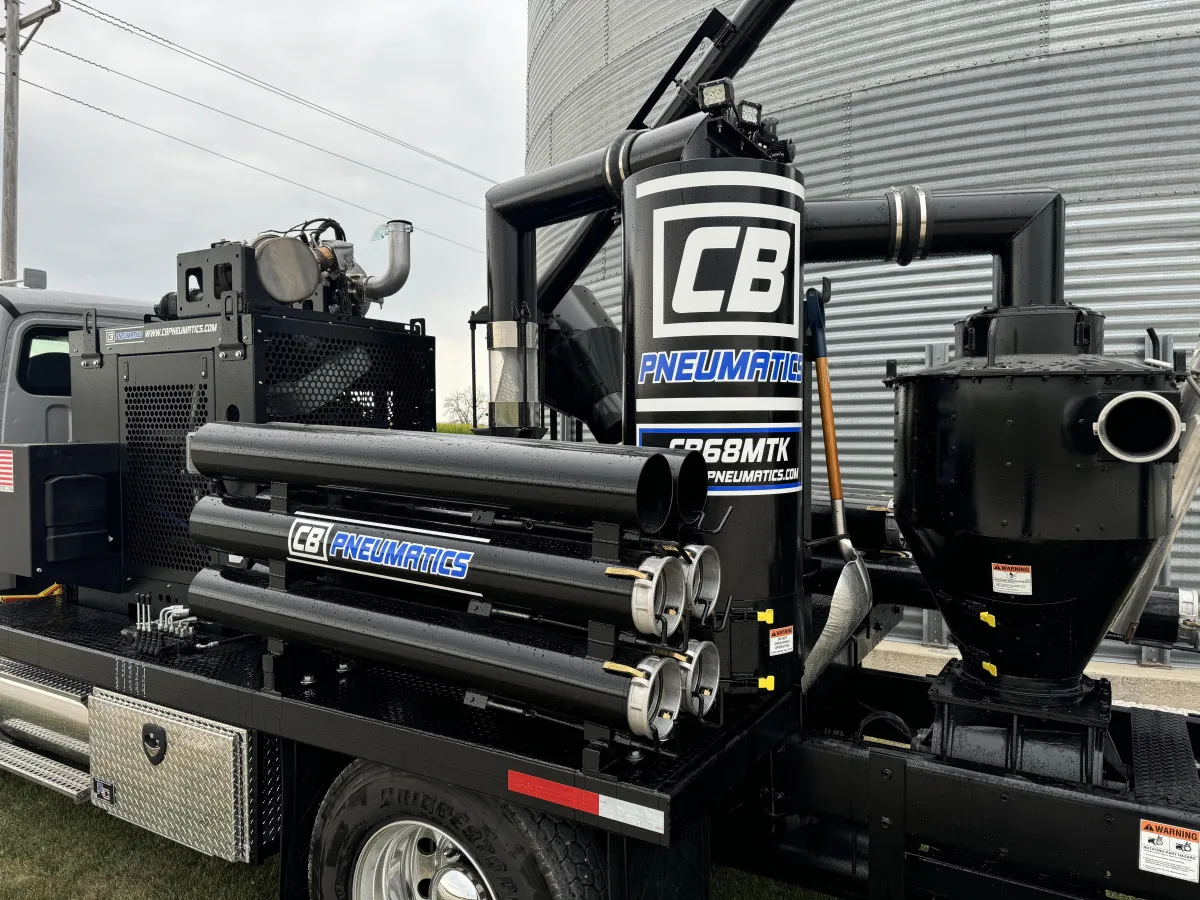

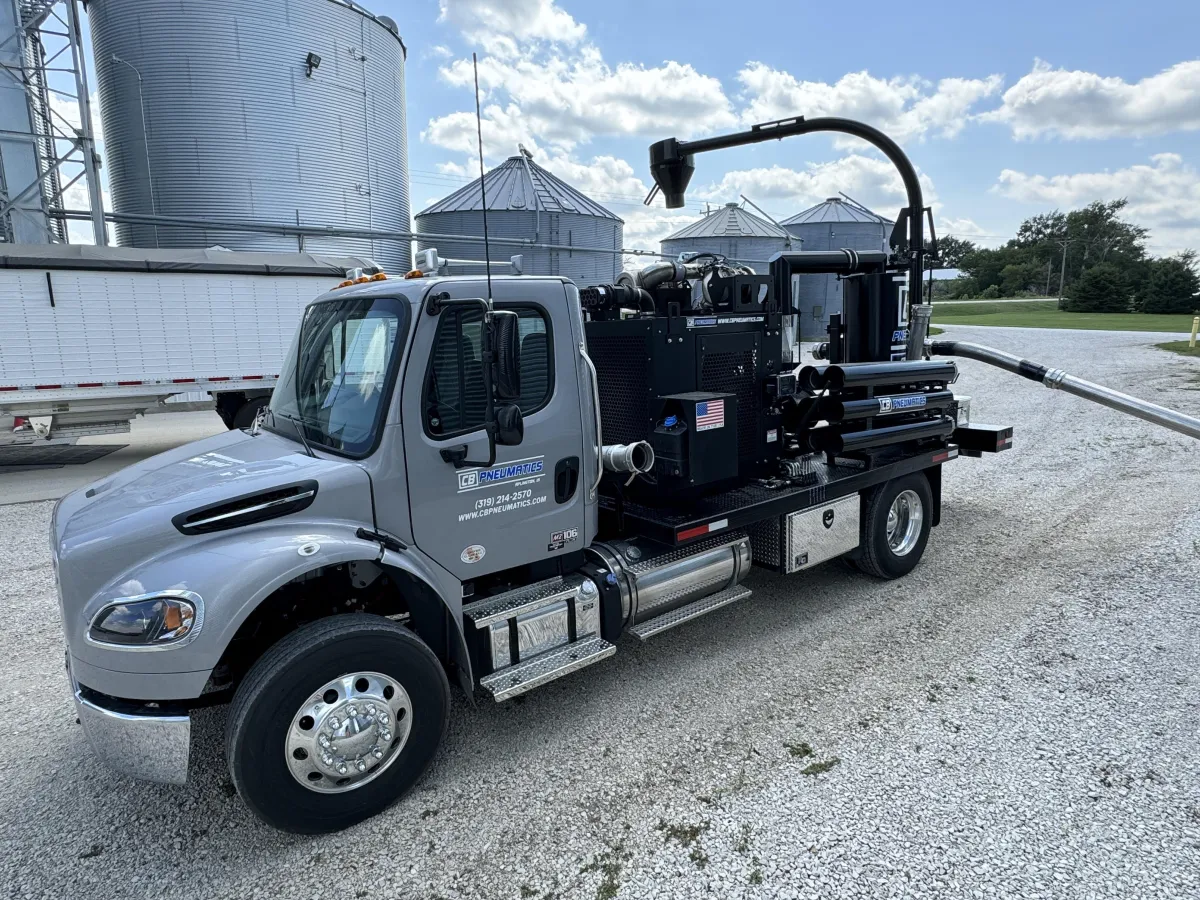

Model CB68MTK Truck Mount System

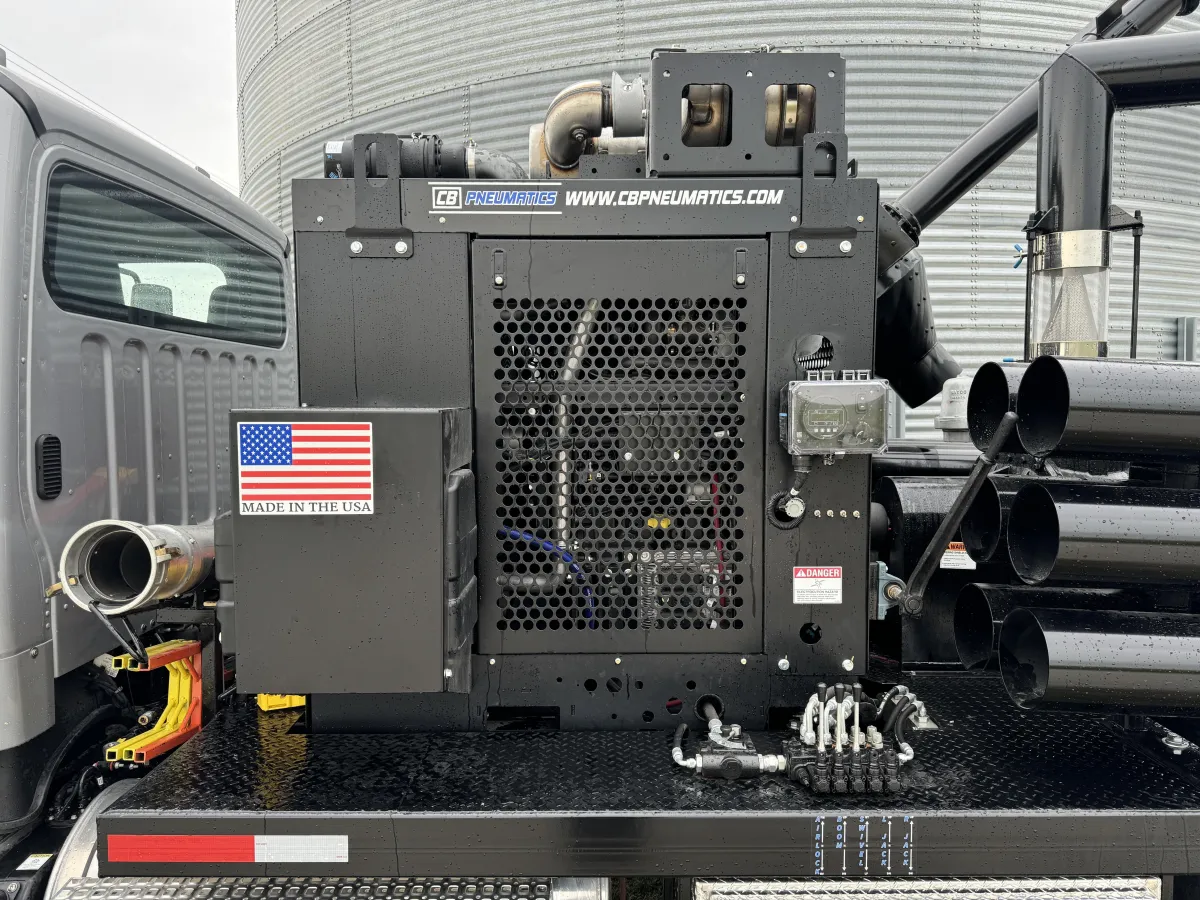

The CB68MTK is a quiet, self-powered vac unit capable of traveling anywhere. Truck units are easy to operate and maintain. Our direct drive system takes out the hassle of realigning belts and increases the safety of operation. Hydraulics make controlling the loading arm and airlock simple. Operators have the choice of unloading from 3 sides of the vac, dual inlet options, and the ability to transfer material directly into a pit by simply removing the bottom elbow.

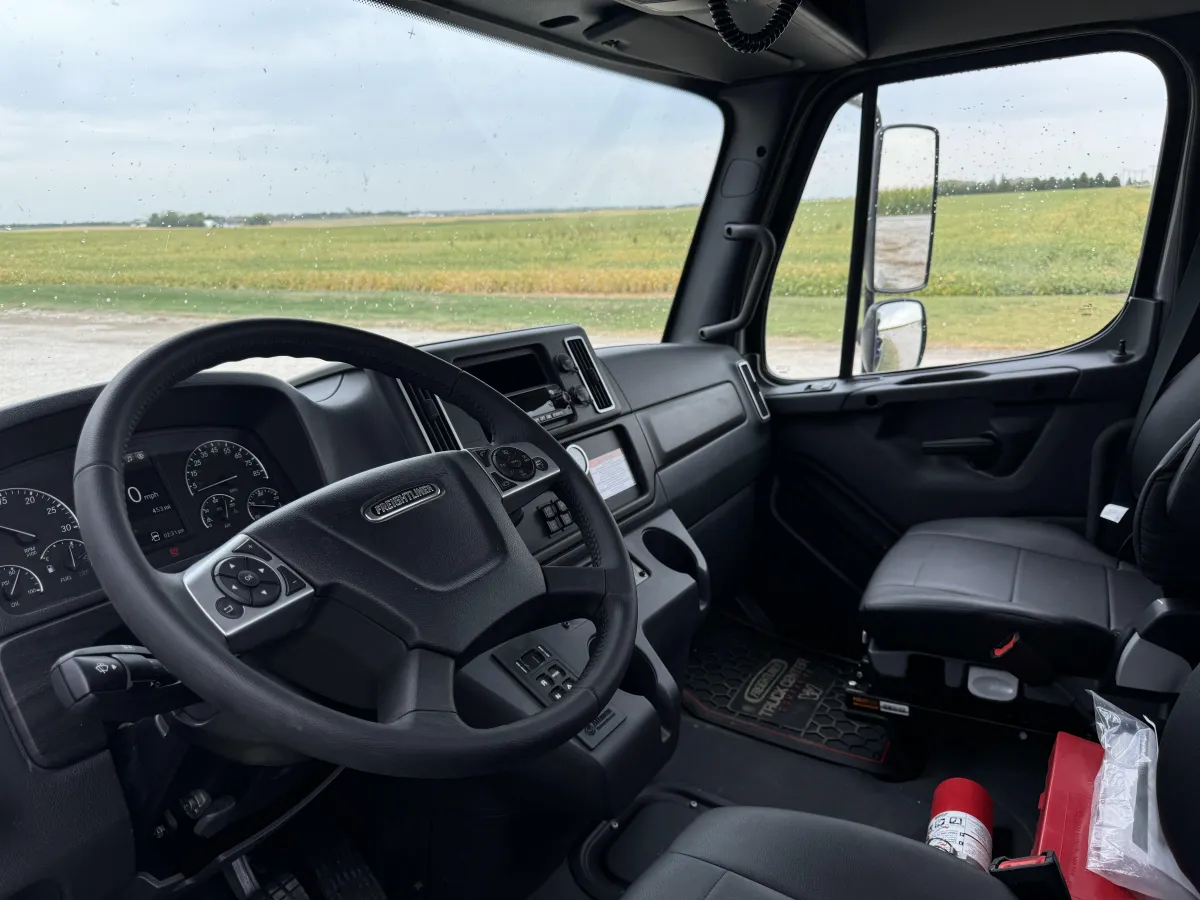

FREIGHTLINER- M2 106 PLUS MEDIUM DUTY TRUCK

JOHN DEERE- TIER 4, POWERTECH 4.5L DIESEL ENGINE

GARDNER DENVER- 8MVP PUMP, 1800RPM

CB PNEUMATICS- ADJUSTABLE/REVERSIBLE AIRLOCK

CB PNEUMATICS- DI BLOWER PROTECTION

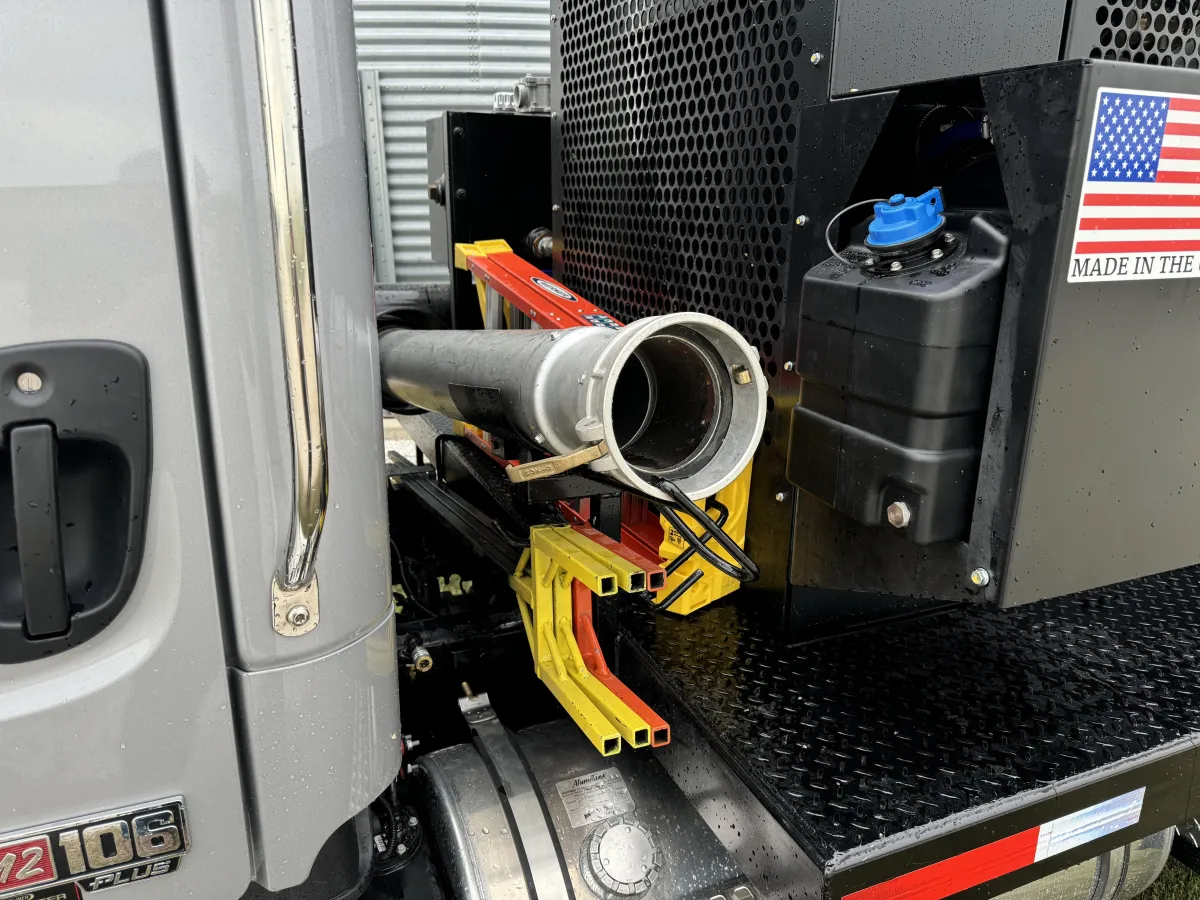

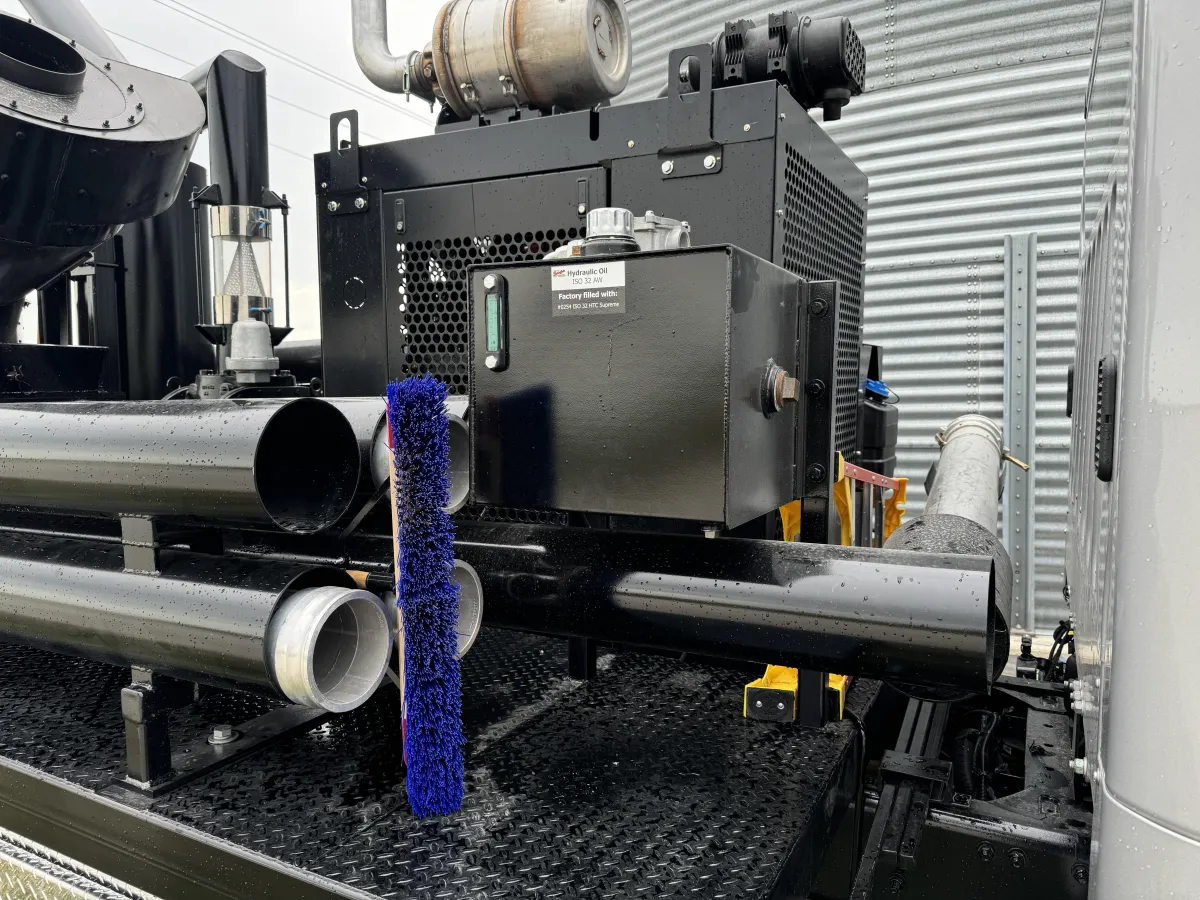

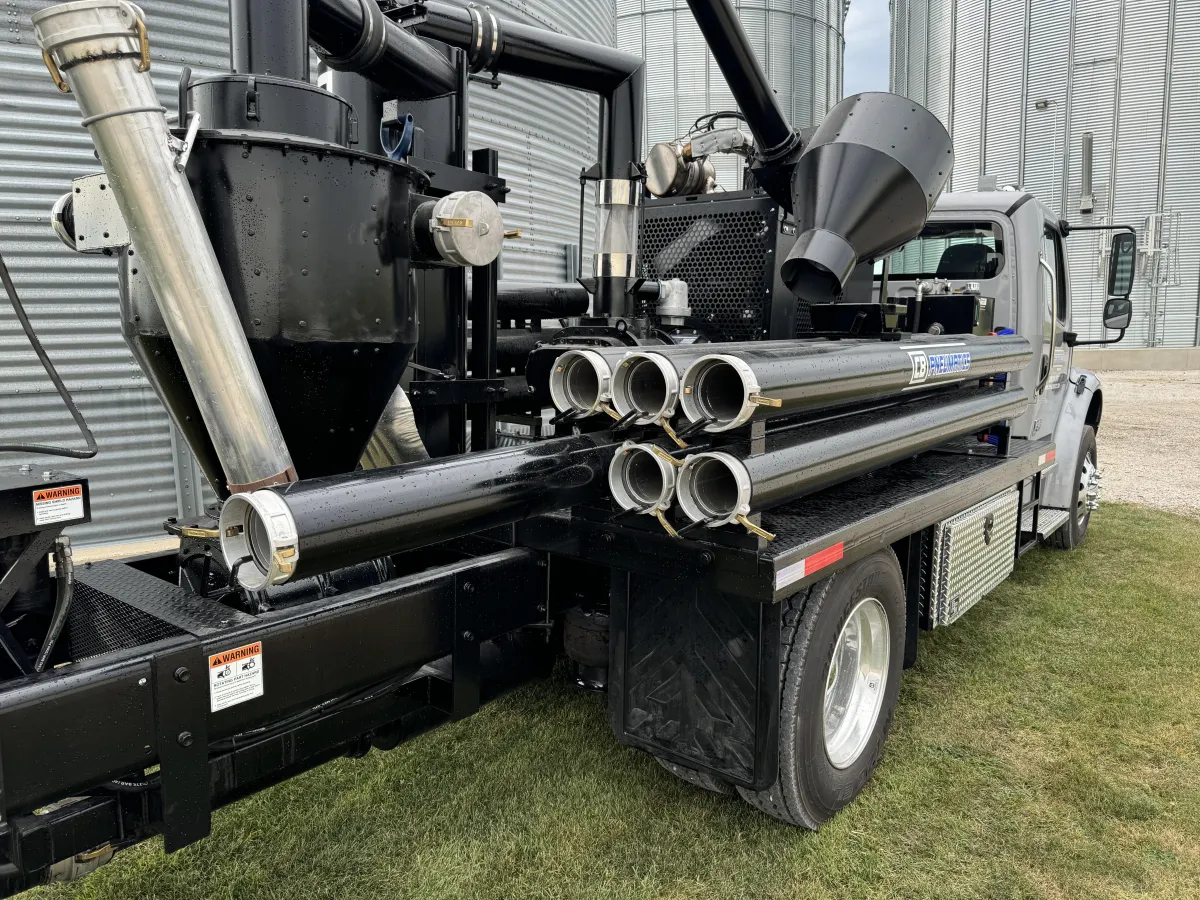

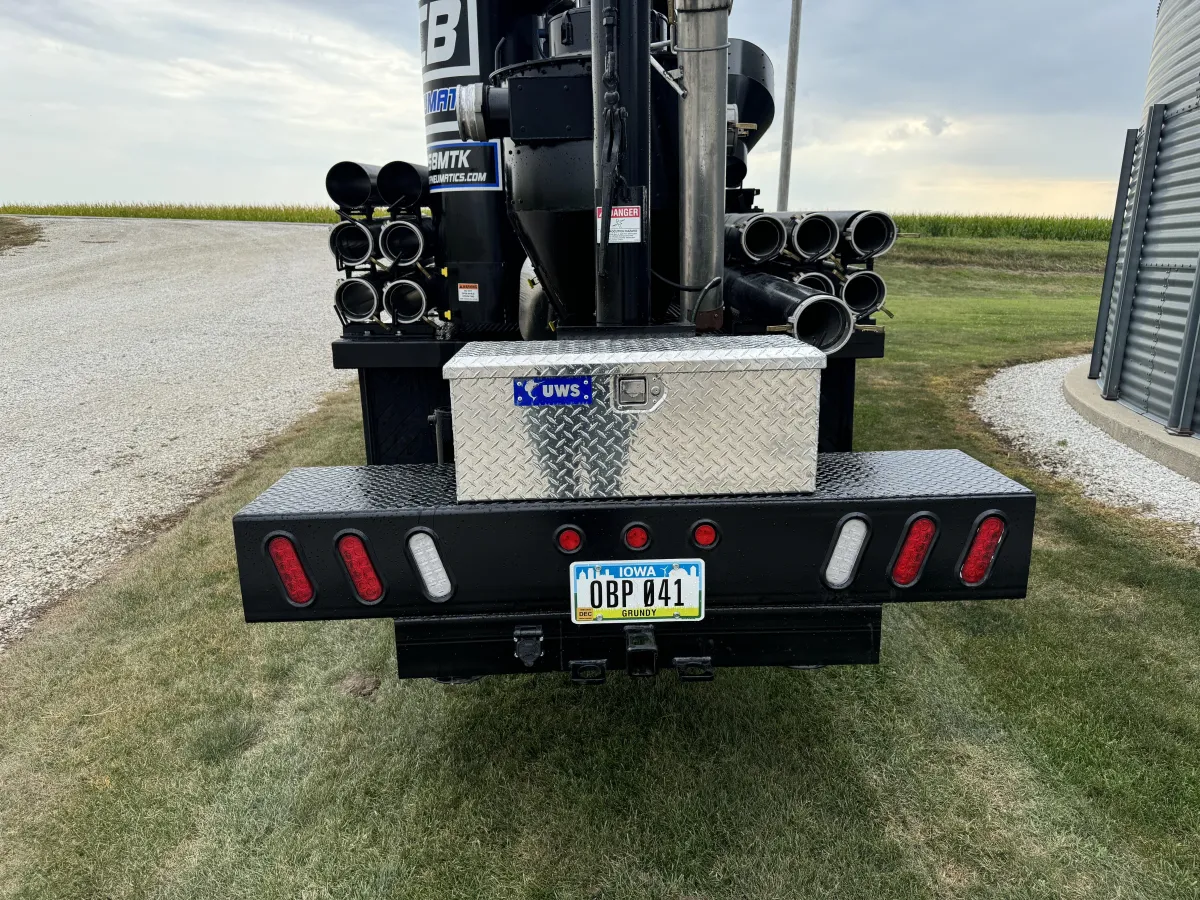

CB PNEUMATICS- PIPE RACK STORAGE SYSTEM

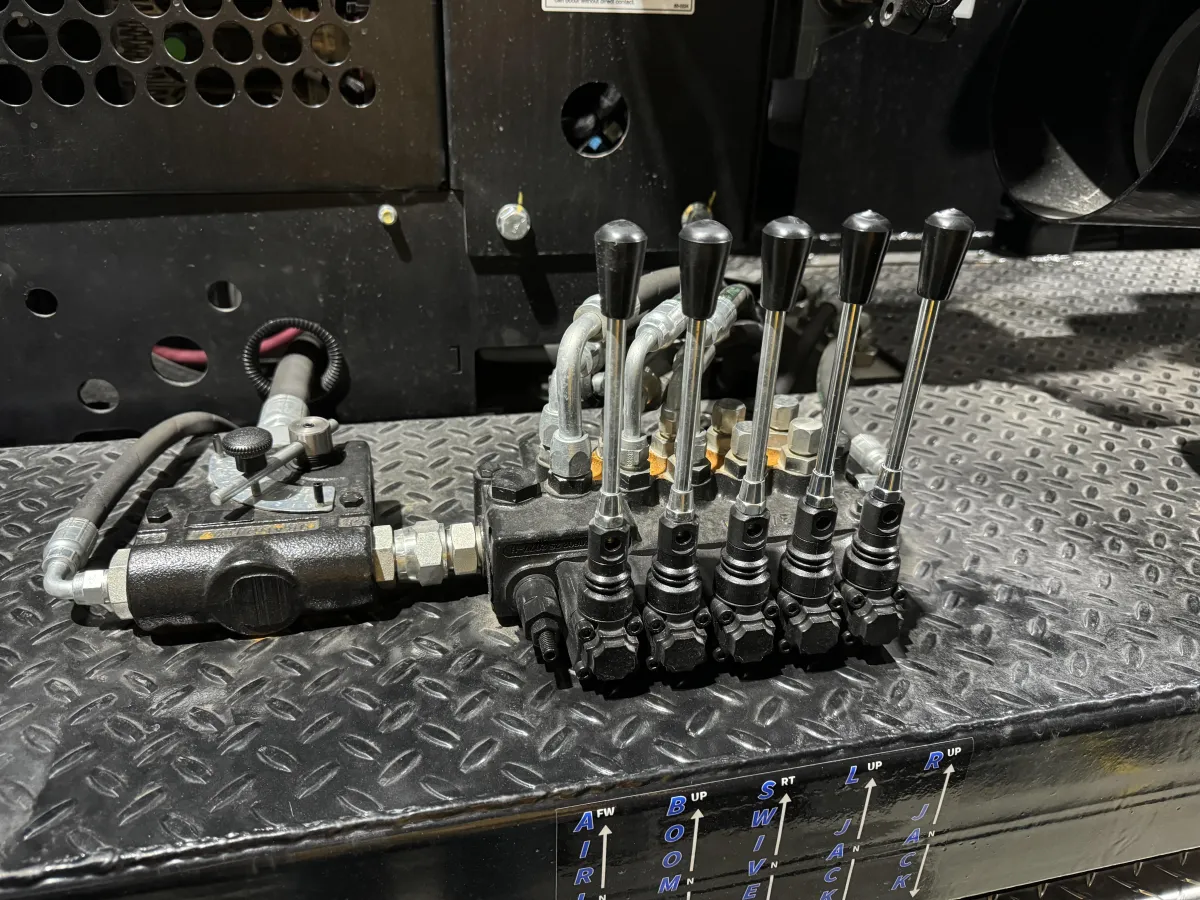

SELF CONTAINED HYDRAULIC AIRLOCK/LOADING BOOM ARM

DIRECT DRIVE POWER SYSTEM

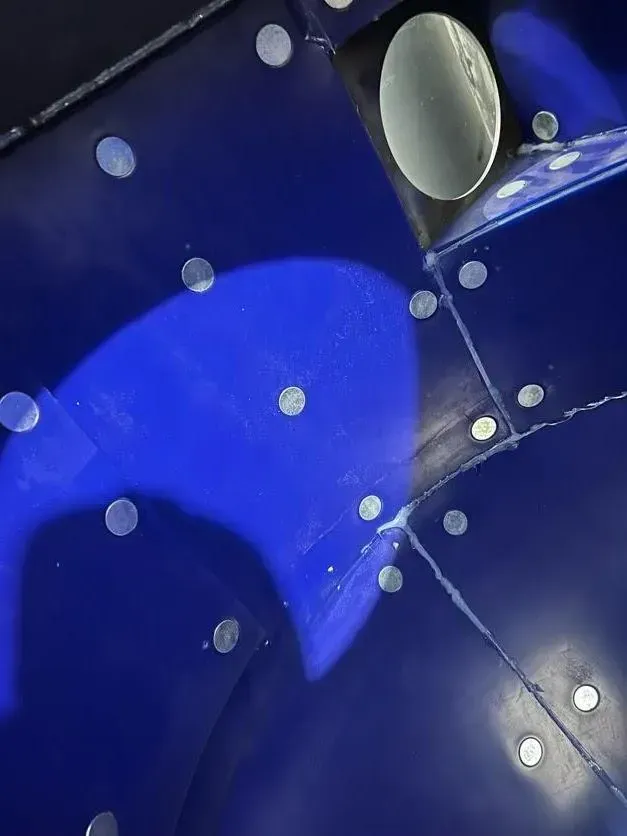

1/4 INCH URETHANE LINED CYCLONES, 1/2 INCH LINED INTAKES

CENTER MOUNTED LOADING BOOM ARM

(Components May Vary Based On Availability)

SPECIFICATIONS

MODEL: CB68MTK

LENGTH:

29' 6"

WIDTH:

8' 5"

TRANSPORT HEIGHT:

13' 6"

LOADING CLEARANCE:

12' 4"

WEIGHT:

21,700 LBS

WHEELBASE:

15' 11"

TRUCK

FREIGHTLINER M2 106 PLUS

ENGINE:

CUMMINS L9 300 HP DIESEL

EMISSIONS:

FINAL TIER 4

TRANSMISSION:

ALLISON 3000 RDS AUTOMATIC

BRAKES:

AIR BRAKES

FUEL TANK:

2 - 50 GALLON ALM TANKS

ENGINE

JOHN DEERE 4.5L POWER UNIT

HORSEPOWER:

160 HP

EMISSIONS:

FINAL TIER 4

CYLINDERS:

4

DISPLACEMENT:

4.5L

BLOWER

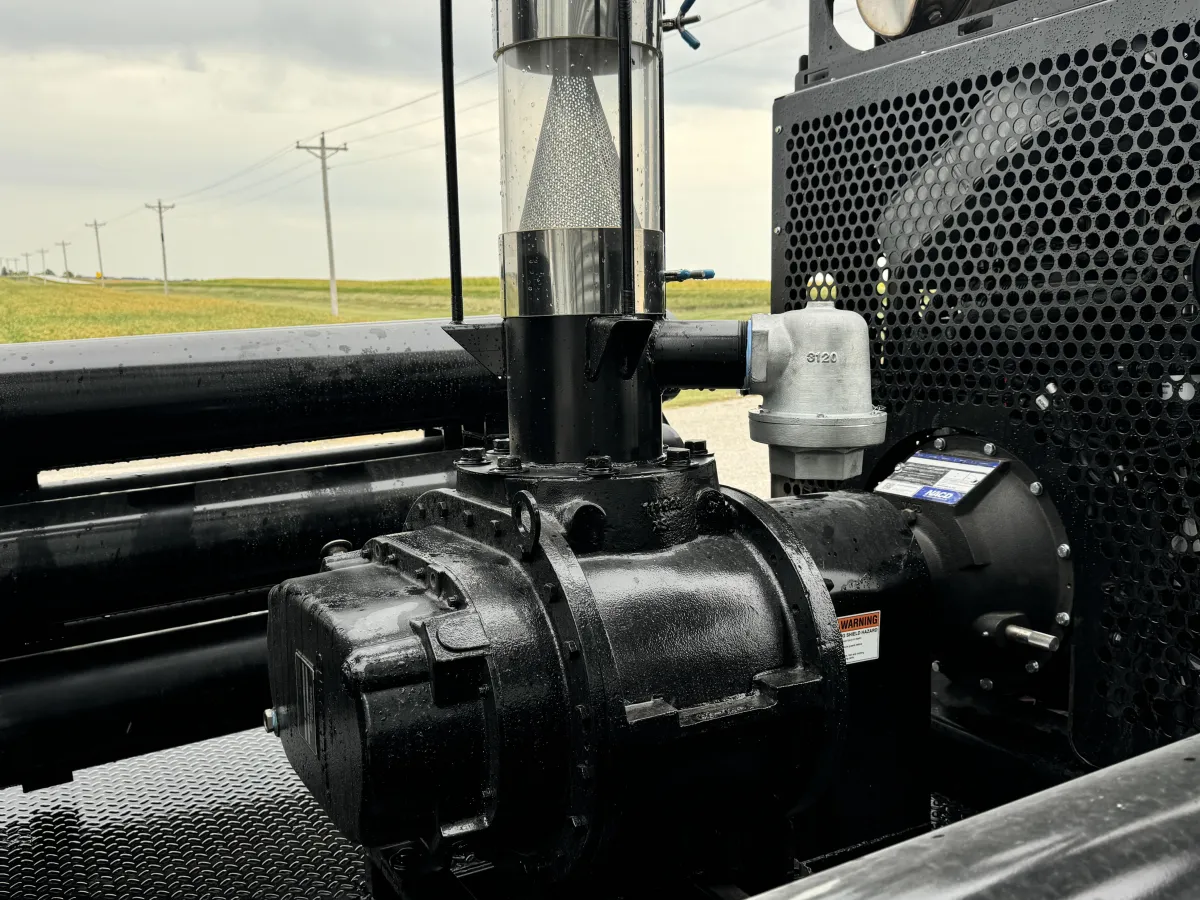

GARDNER DENVER 8MVP BLOWER

RPM:

1,800 RPM

CFM:

1,609 CFM

BHP:

56:65 BHP

DISPLACEMENT:

1.040 CU FT / REV

OUTPUT:

13 "HG

AIRLOCK

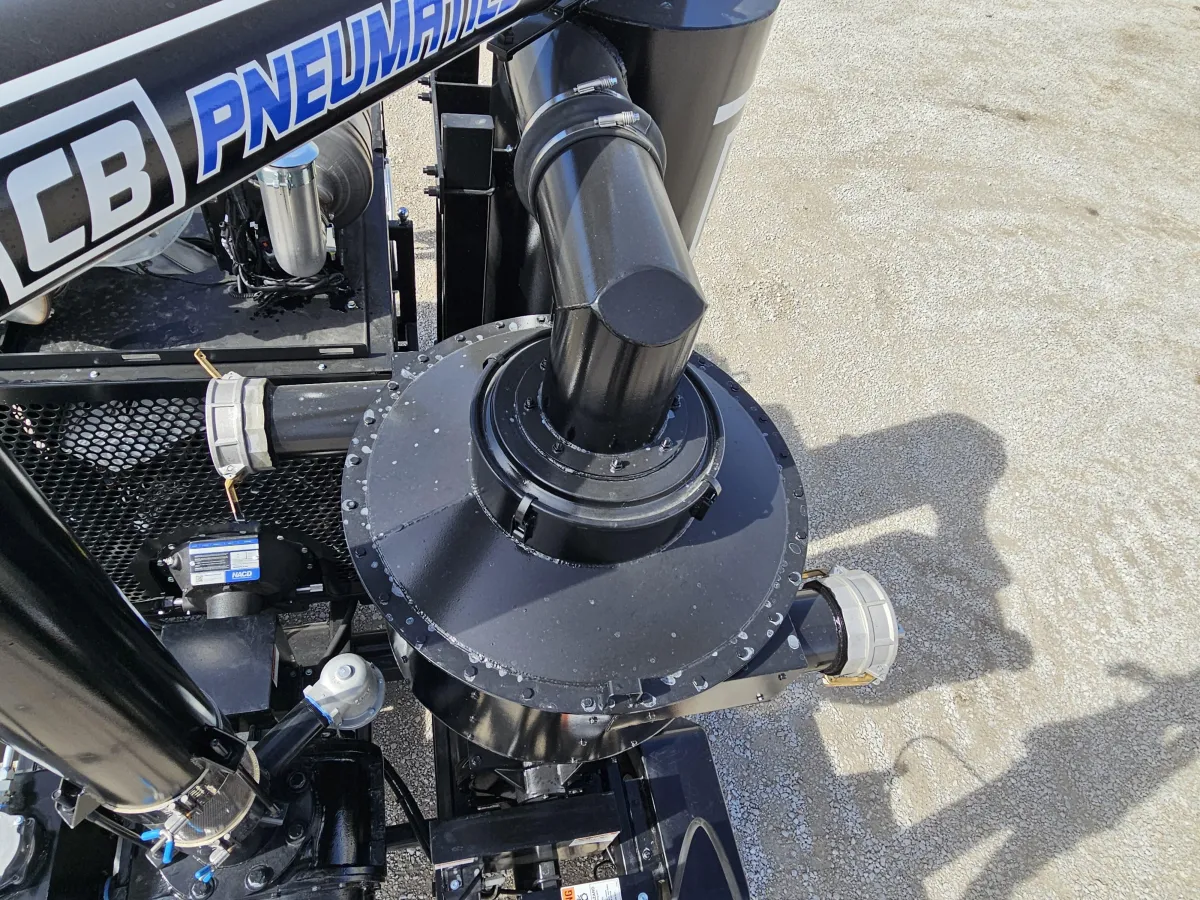

CB PNEUMATICS ROTARY AIRLOCK

HOUSING:

HEAVY DUTY STEEL CASTING

ROTORS:

8 ROTORS WITH ADJUSTABLE TIPS

VOLUME:

1.74 CU FT / REV

RPM:

40 RPM

DUST FILTER

CB PNEUMATICS DUST FILTER

SEPARATING FORCE:

CENTRIFUGAL

VOLUME:

5.72 CU FT

CLEAN OUT:

EVERY 3,000 BU

Frequent Questions

Are all CB Pneumatic systems inspected for quality?

Yes, all CB Pneumatic systems are inspected for quality. Not only do our units go through a visual inspection, they undergo a preliminary operations analysis. Each system handles 2,000 bushel of grain to guarantee your vac is operating at peak performance prior to delivery.

Can you demo a vac prior to purchase?

Yes, you can demo a grain vac prior to purchase by scheduling a demo with our team today. On a demo day, we will show you how to properly operate and maintain a CB Pneumatics vac system.

What are the main benefits of choosing a truck-mounted grain vac system?

Because it’s mounted directly on the truck, a truck-mounted system’s benefits include superior mobility, instant deployment, no trailer to hitch or tow, easier access to remote or tight job sites and reduced logistical hassles compared to tow-behind units.

Do truck mounted grain vacs offer enough power for heavy-duty use?

Yes, our truck mounted models are perfect for commercial and industrial operations where speed and efficiency are crucial.

What maintenance is required for a truck-mounted grain vac?

Like any grain vac, regular maintenance is needed for truck-mounted grain vacs, including periodic engine checks, filter and fluid changes, hose and coupling inspections and ensuring adequate airflow for cooling and reliable operation.

How do I know if a truck mounted system is the right choice for my operation instead of a PTO driven or trailer mounted system?

You’ll want a truck mounted grain vac if:

1. You need fast mobility between bins or job sites without towing or hooking it up to a tractor.

2. You want an all-in-one system that stays permanently installed.

3. You want the cleanest workflow with integrated hose reels, piping, controls and enclosed components.

4. You want to save manpower by arriving and operating from the truck with minimal setup.

5. You run a commercial or industrial grain operation, where speed and efficiency are critical.
